Crankshaft Pulley Lock Bolt Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold the crankshaft pulley using the SSTs.

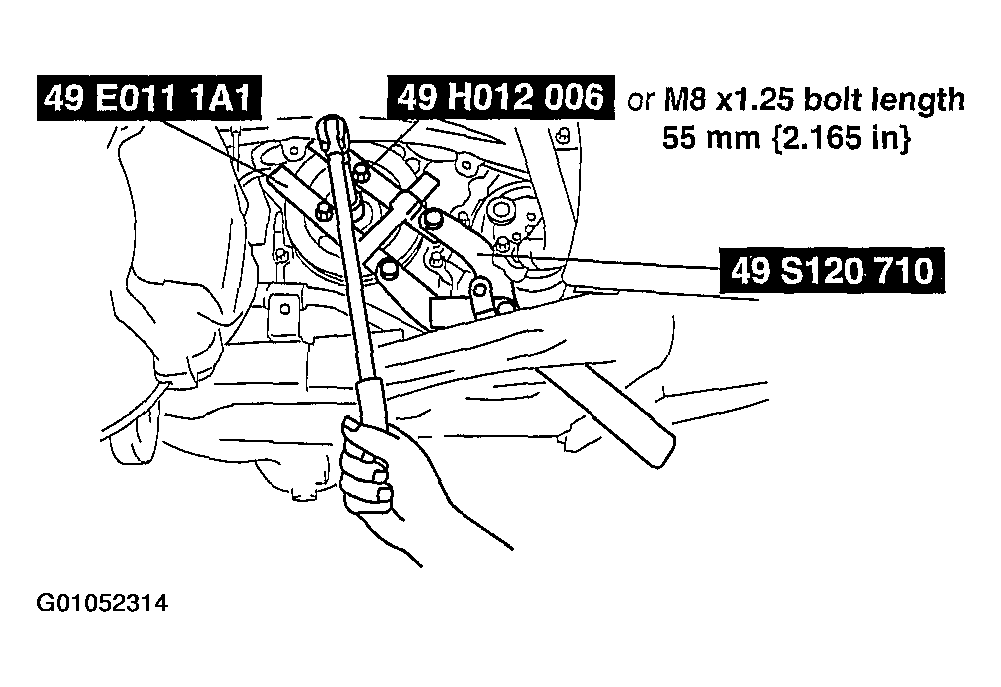

    Fig 1: Holding Crankshaft Pulley
    G01052314Courtesy of MAZDA MOTORS CORP.
  2. Tighten the new crankshaft pulley lock bolt in four steps.
    1. Tighten to 120 N.m {12.2 kgf.m, 88.5 ft.lbf}.
    2. Loosen 360°  (one full turn) in reverse order.
    3. Tighten to 47-53 N.m {4.8-5.4 kgf.m, 35-39 ft.lbf}.
    4. Tighten 85°-95°.
  3. Install the A/C compressor.
