Crankshaft Position (CKP) Sensor Pulse Wheel Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the"FRONT" mark of the pulse wheel facing you, install the crankshaft position (CKP) sensor pulse wheel using the keyway on the same side as the empty space shown in Fig 1.

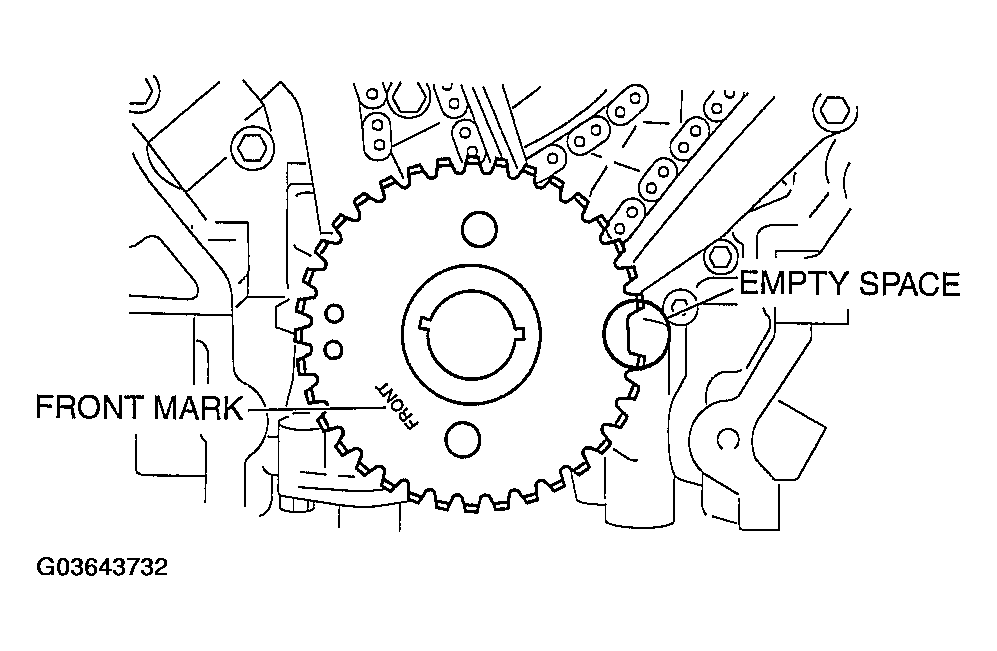

Fig 1: Installing Crankshaft Position (CKP) Sensor Pulse Wheel
G03643732Courtesy of MAZDA MOTORS CORP.
