Camshaft Oil Seal Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply clean engine oil to the camshaft oil seal.
  2. Install the camshaft oil seal using the SSTs.

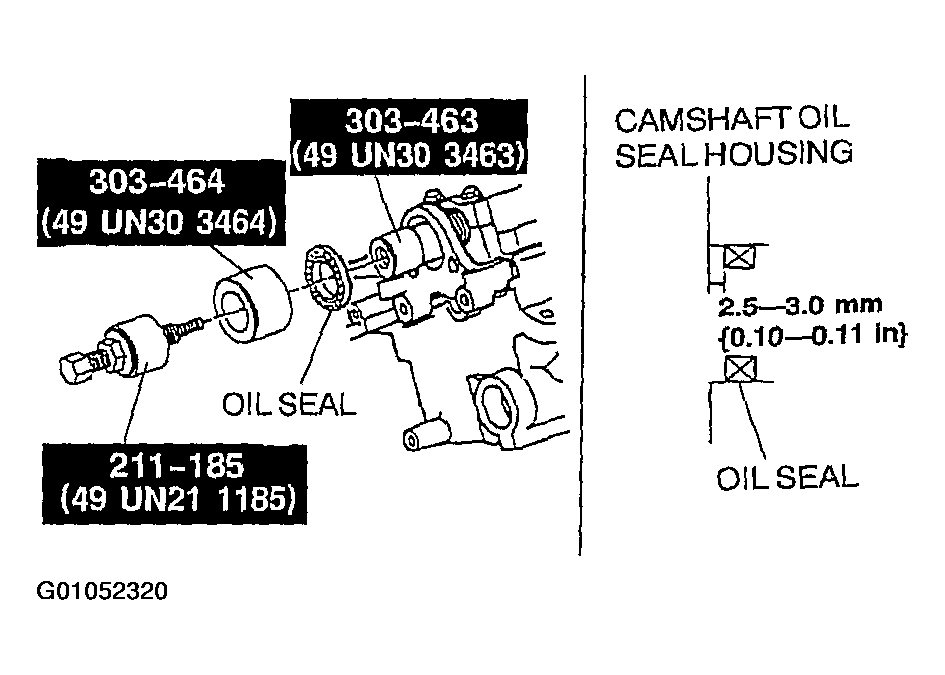

Fig 1: Installing Camshaft Oil Seal
G01052320Courtesy of MAZDA MOTORS CORP.
