Hydraulic Lash Adjuster (HLA) Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing chain. (See TIMING CHAIN REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the figure.
  3. Install in the reverse order of removal.

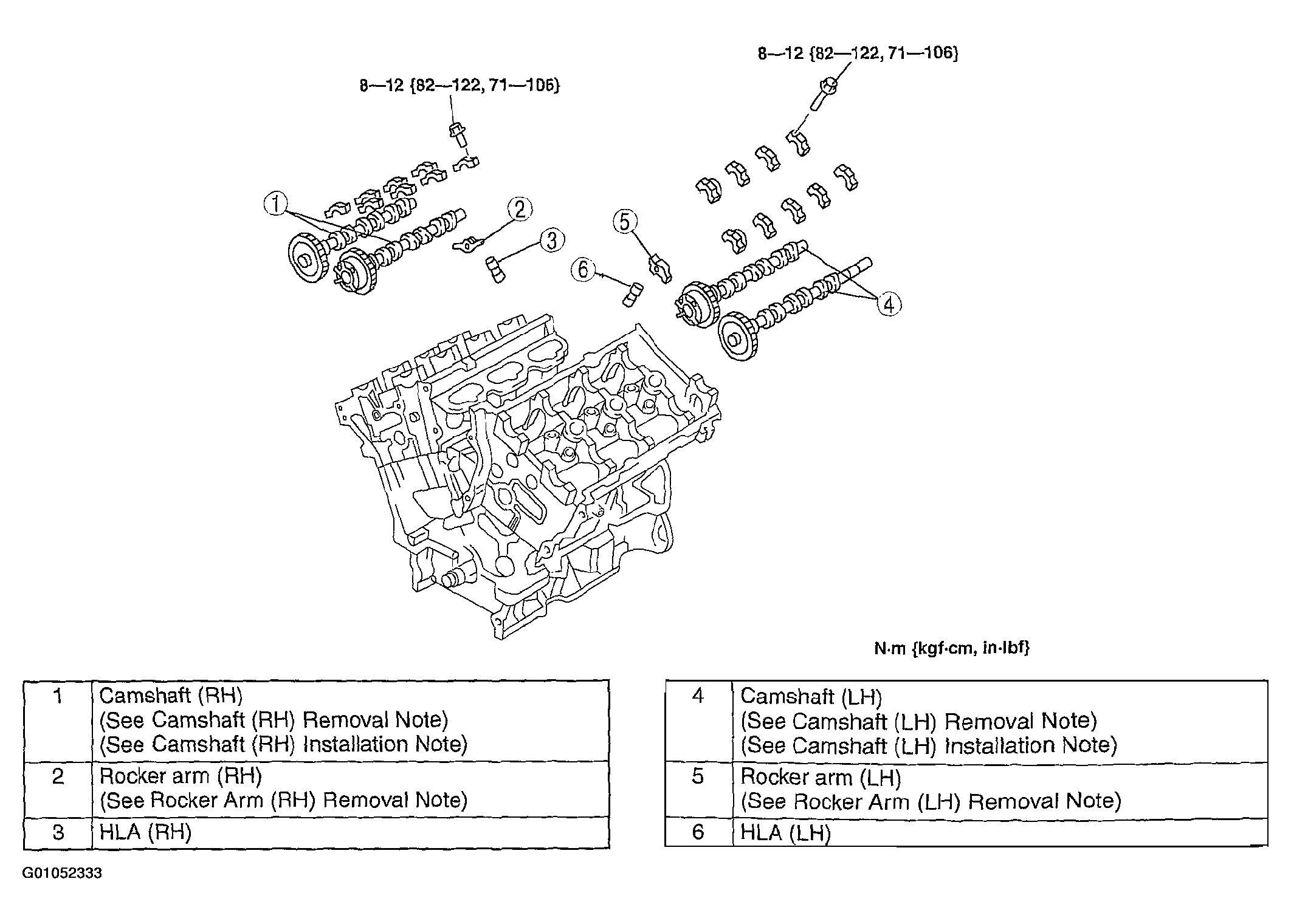

Fig 1: Removing/Installing Hydraulic Lash Adjuster [AJ]
G01052333Courtesy of MAZDA MOTORS CORP.
