Front Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the drive belt. (See DRIVE BELT REPLACEMENT .)
  3. Remove in the order indicated in the figure.
  4. Install in the reverse order of removal.

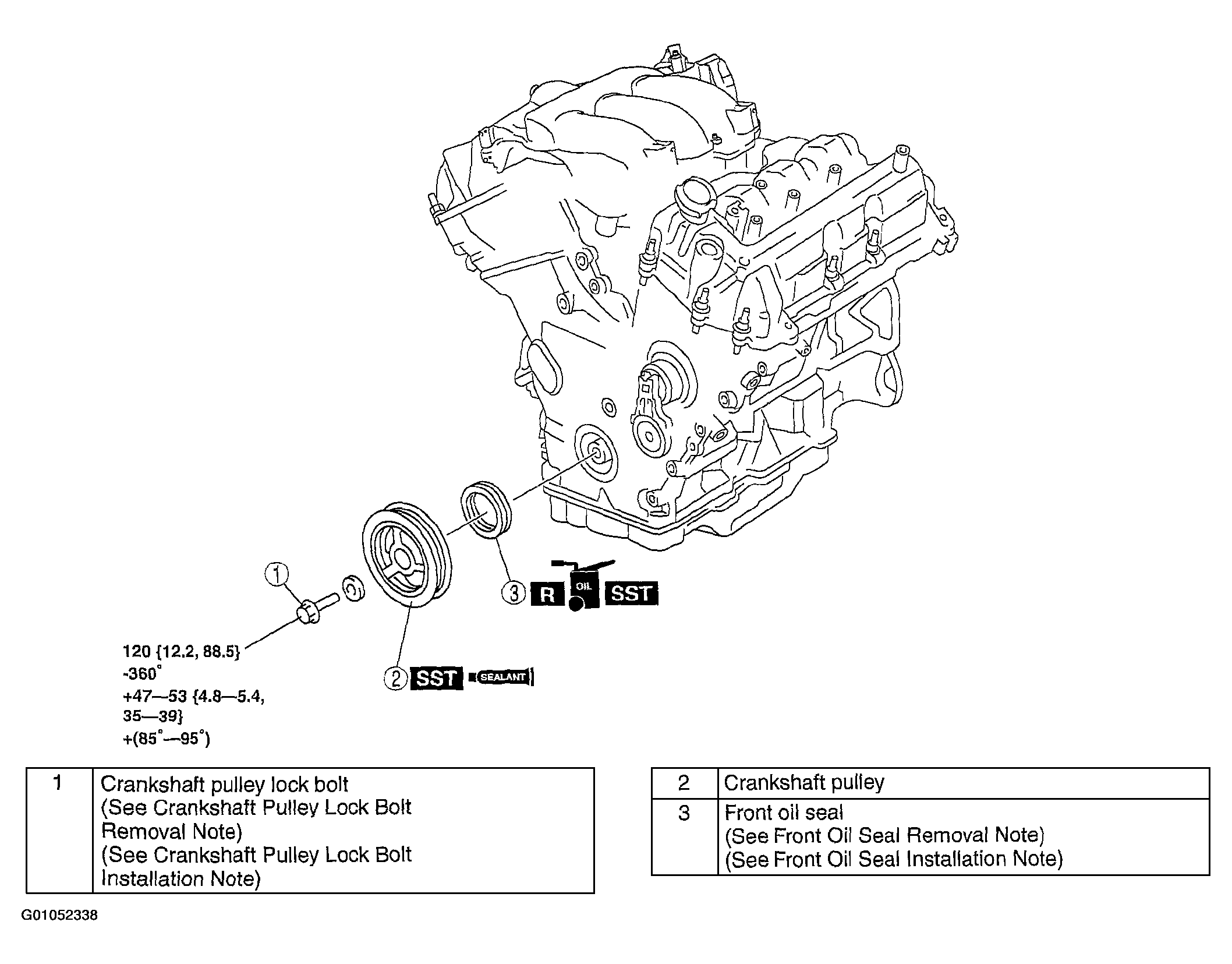

Fig 1: Replacing Front Oil Seals [AJ]
G01052338Courtesy of MAZDA MOTORS CORP.
