Front Oil Seal Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the front oil seal using part A of the SST  [303-335 (49 UN30 3335)] and the SST  [303-102 (49 UN01 002)].
    Fig 1: Assembling Front Oil Seal
    G01052342Courtesy of MAZDA MOTORS CORP.
  2. Apply clean engine oil to the oil seal.
  3. Push the oil seal slightly in by hand.
  4. Compress the oil seal using the SSTs.

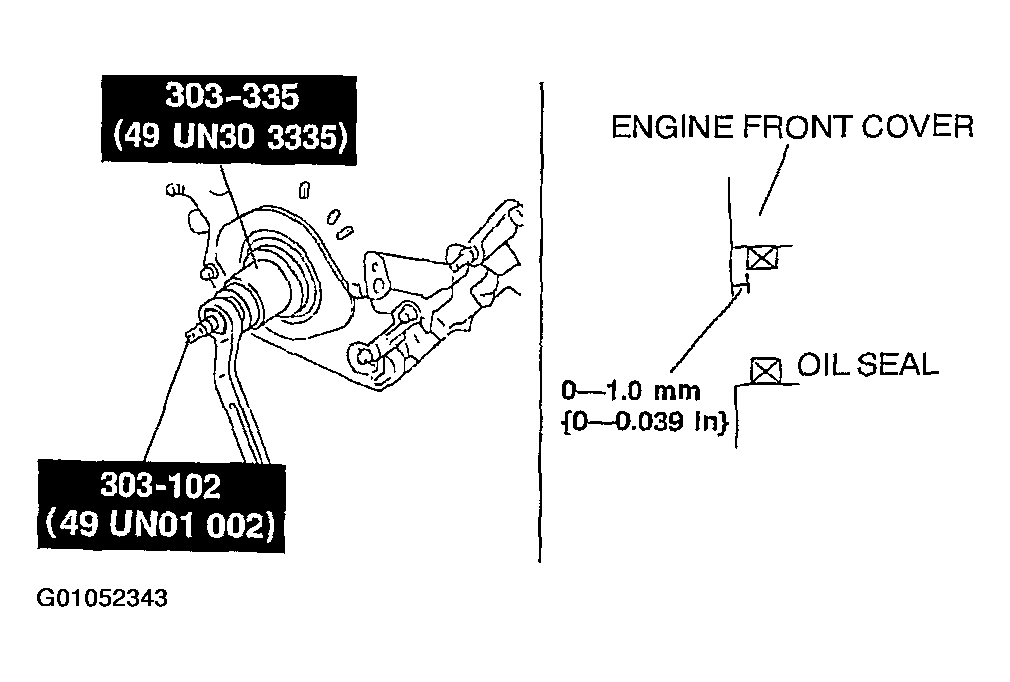

Fig 2: Compressing Oil Seal
G01052343Courtesy of MAZDA MOTORS CORP.
