No. 3 Engine Joint Bracket Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Secure the engine and the transaxle using an engine jack and attachment as shown.

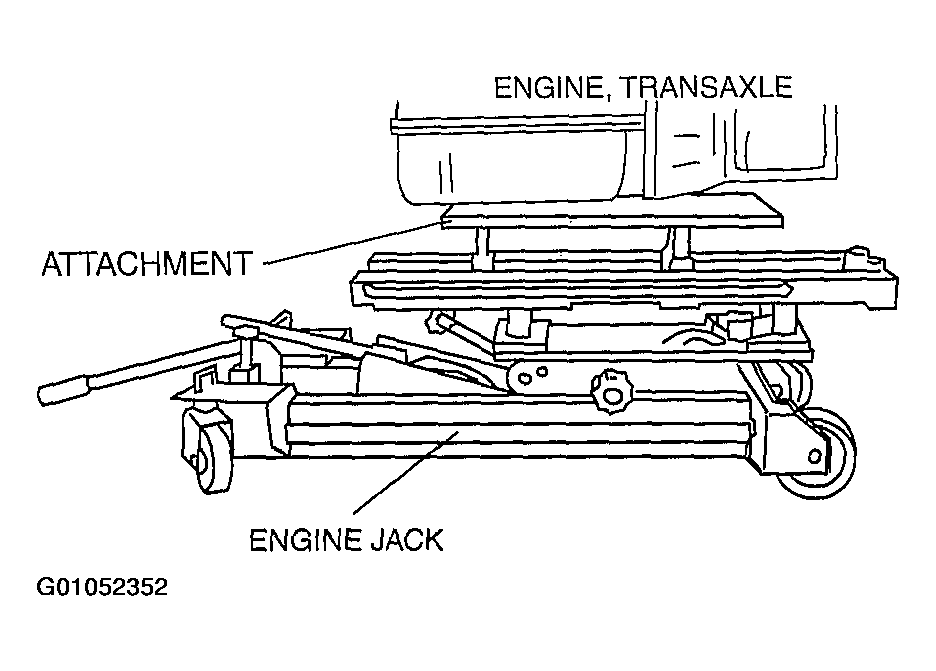

Fig 1: Securing Engine & Transaxle Using Engine Jack
Courtesy of MAZDA MOTORS CORP.
Tighten the No. 3 engine joint bracket bolts and nuts in the order shown.

TIGHTENING TORQUE SPECIFICATION FOR NO. 3 ENGINE

Bolt & Nut No.	N.m {kgf.m, ft.lbf}
1	74.5-104.9 {7.6-10.7, 55.0-77.3}
2, 3, 4	43.1-60.8 {4.4-6.1, 31.8-44.8}

Fig 2: Locating No. 3 Engine Mount Rubber & Joint Bracket

Courtesy of MAZDA MOTORS CORP.
