Water Pump Drive Belt

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the plug hole plate.
  2. Rotate the water pump drive belt auto tensioner counterclockwise to release the drive belt tension and remove the water pump drive belt.

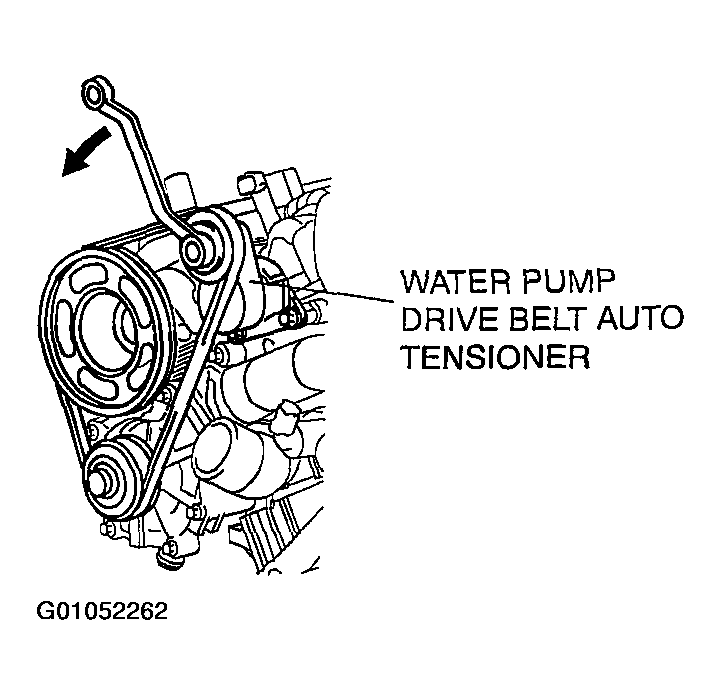

    Fig 1: Locating Water Pump Drive Belt Auto Tensioner
    G01052262Courtesy of MAZDA MOTORS CORP.
  3. Reinstall the water pump drive belt or install a new water pump drive belt.
