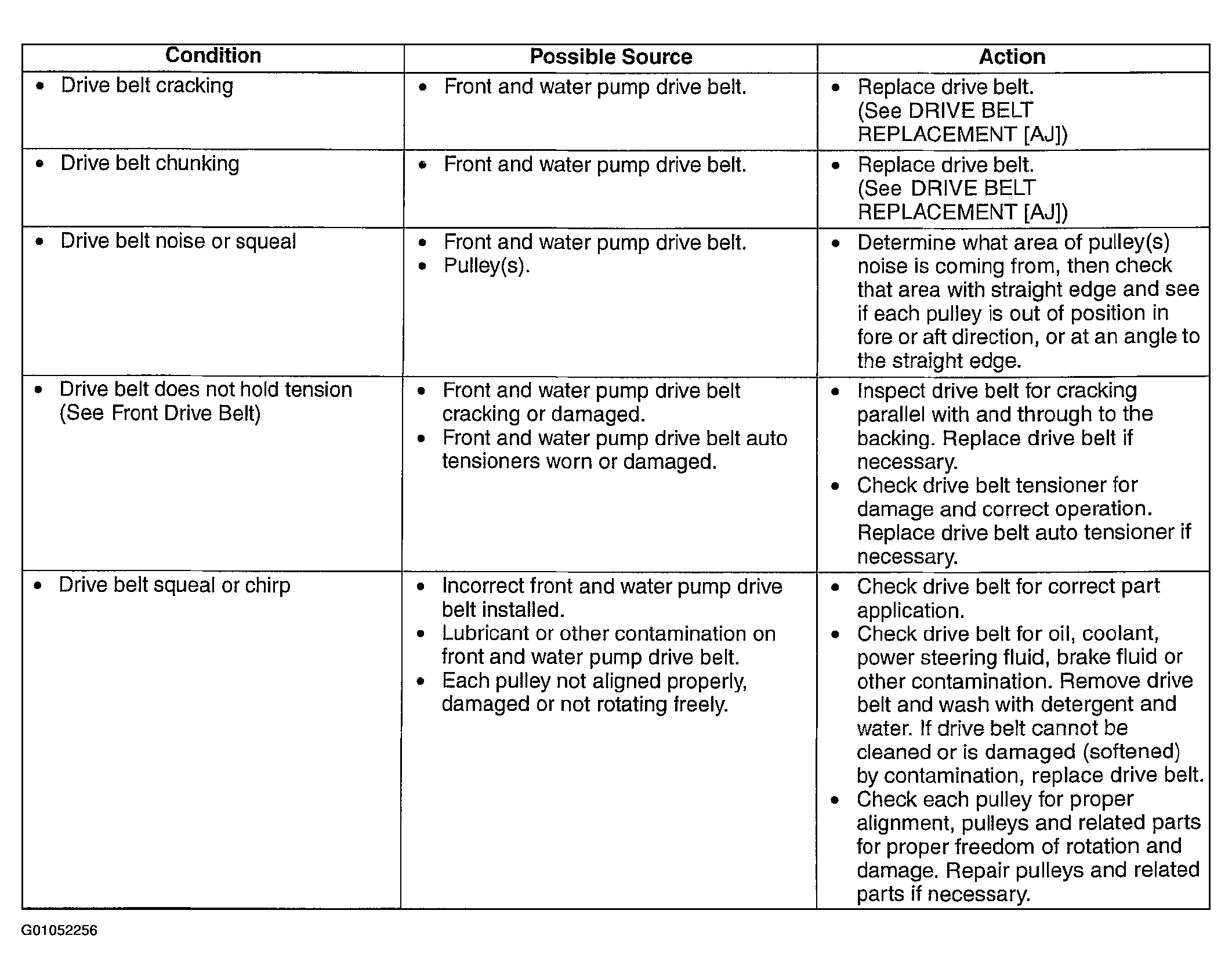

Symptom Chart
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Front and water pump drive belt deflection/tension inspection is not necessary because of the use of the drive belt auto tensioner.
