Front Drive Belt

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the front drive belt auto tensioner indicator mark does not exceeds the limit.
- If it exceeds the limit, replace the front drive belt. (See FRONT DRIVE BELT .)

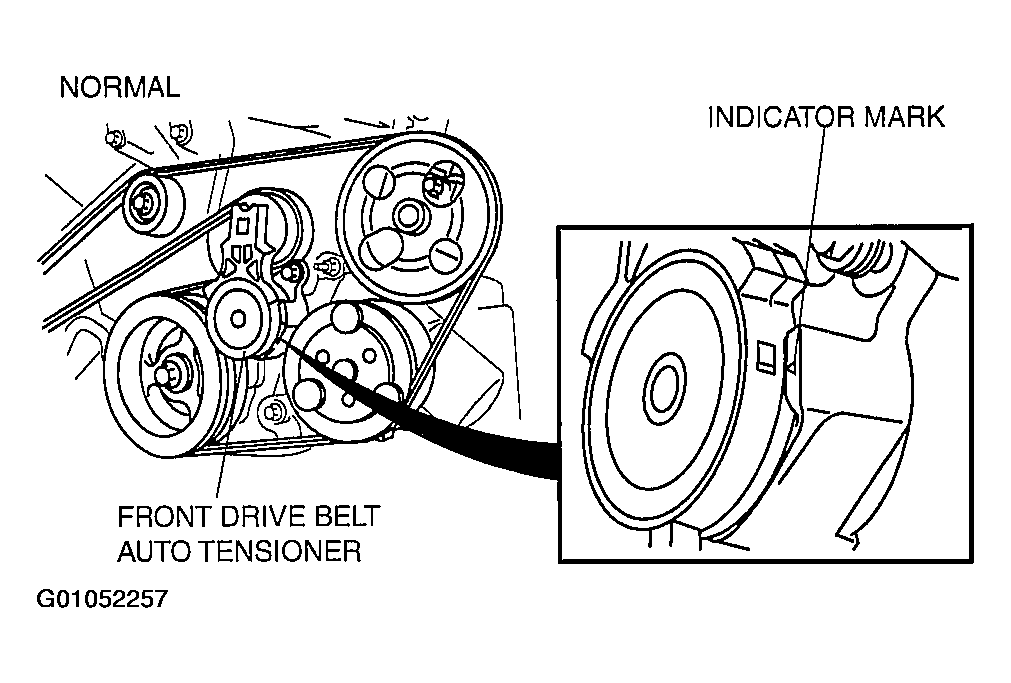

Fig 1: Locating Front Drive Belt Auto Tensioner Limit Indicator Mark - Normal

Courtesy of MAZDA MOTORS CORP.

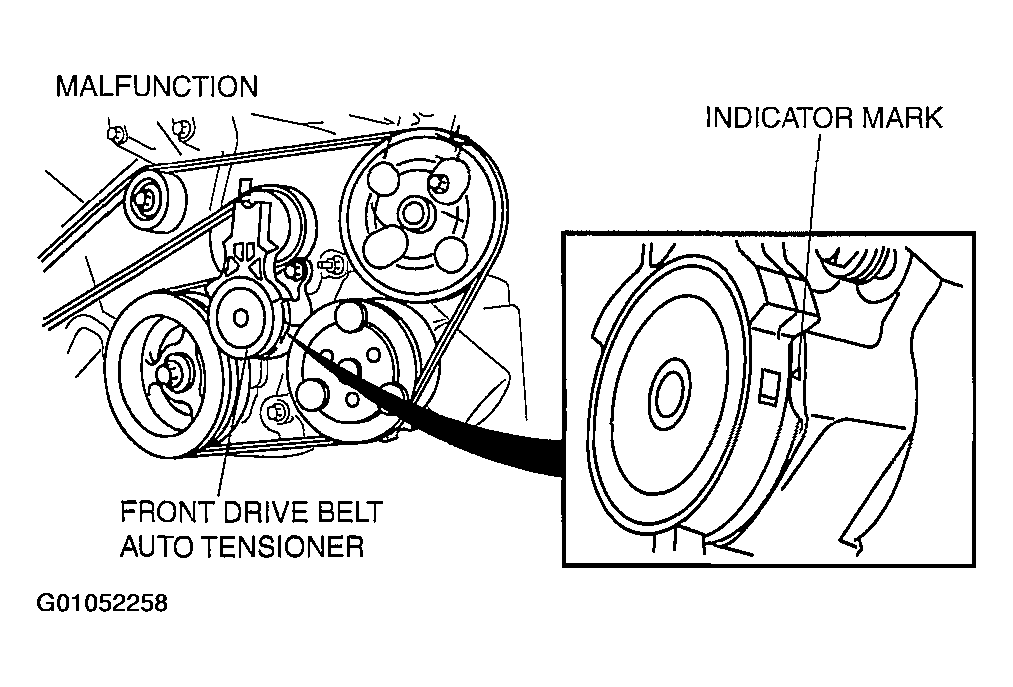

Fig 2: Locating Front Drive Belt Auto Tensioner Limit Indicator Mark - Malfunction/Worn Belt

Courtesy of MAZDA MOTORS CORP.
