Cylinder Head (RH) Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten the cylinder head bolts in the order shown using the following 6 steps.
    1. Tighten to 32-38 N.m {3.3-3.8 kgf.m, 24-28 ft.lbf}.
    2. Tighten 85°-95°.
    3. Loosen 360°  (one full turn) in reverse order.
    4. Tighten to 32-38 N.m {3.3-3.8 kgf.m, 24-28 ft.lbf}.
    5. Tighten 85°-95°.
    6. Tighten 85°-95°.

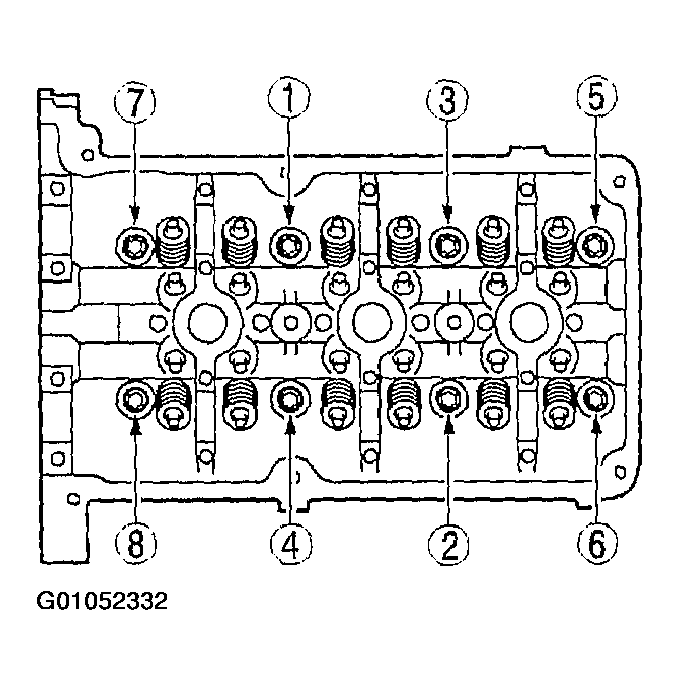

Fig 1: RH Cylinder Head Bolt Tightening Sequence
G01052332Courtesy of MAZDA MOTORS CORP.
