Cylinder Head (LH) Removal Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the cylinder head bolts in several passes in the order shown.

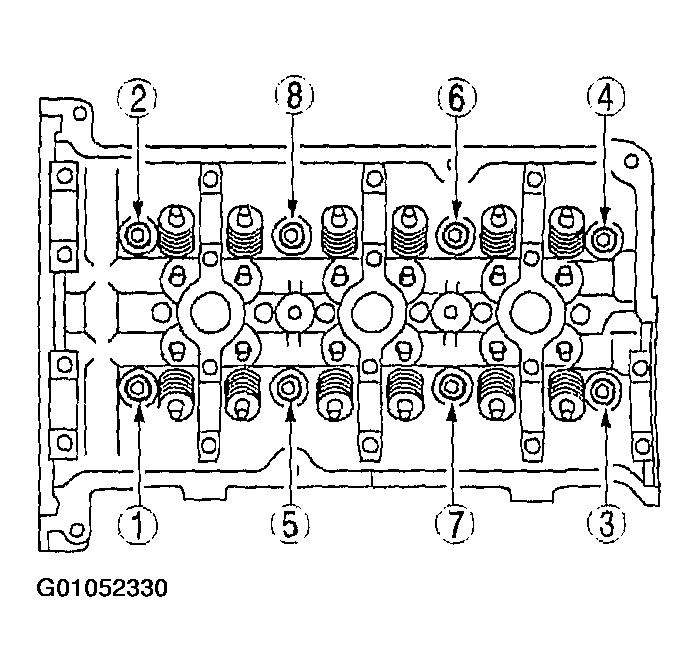

Fig 1: LH Cylinder Head Bolt Removal Sequence
G01052330Courtesy of MAZDA MOTORS CORP.
