Airflow Inspection

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Perform the following test only when directed.

Disconnect the negative battery cable.
Remove the purge solenoid valve. (See PURGE SOLENOID VALVE (L3) INSTALLATION NOTE .)
Inspect airflow between the ports under the following conditions.

Fig 1: Purge Solenoid Valve Terminals Continuity Table
Courtesy of MAZDA MOTORS CORP.
- If not as specified, replace the purge solenoid valve.
- If as specified, carry out the "Circuit Open/ Short Inspection".

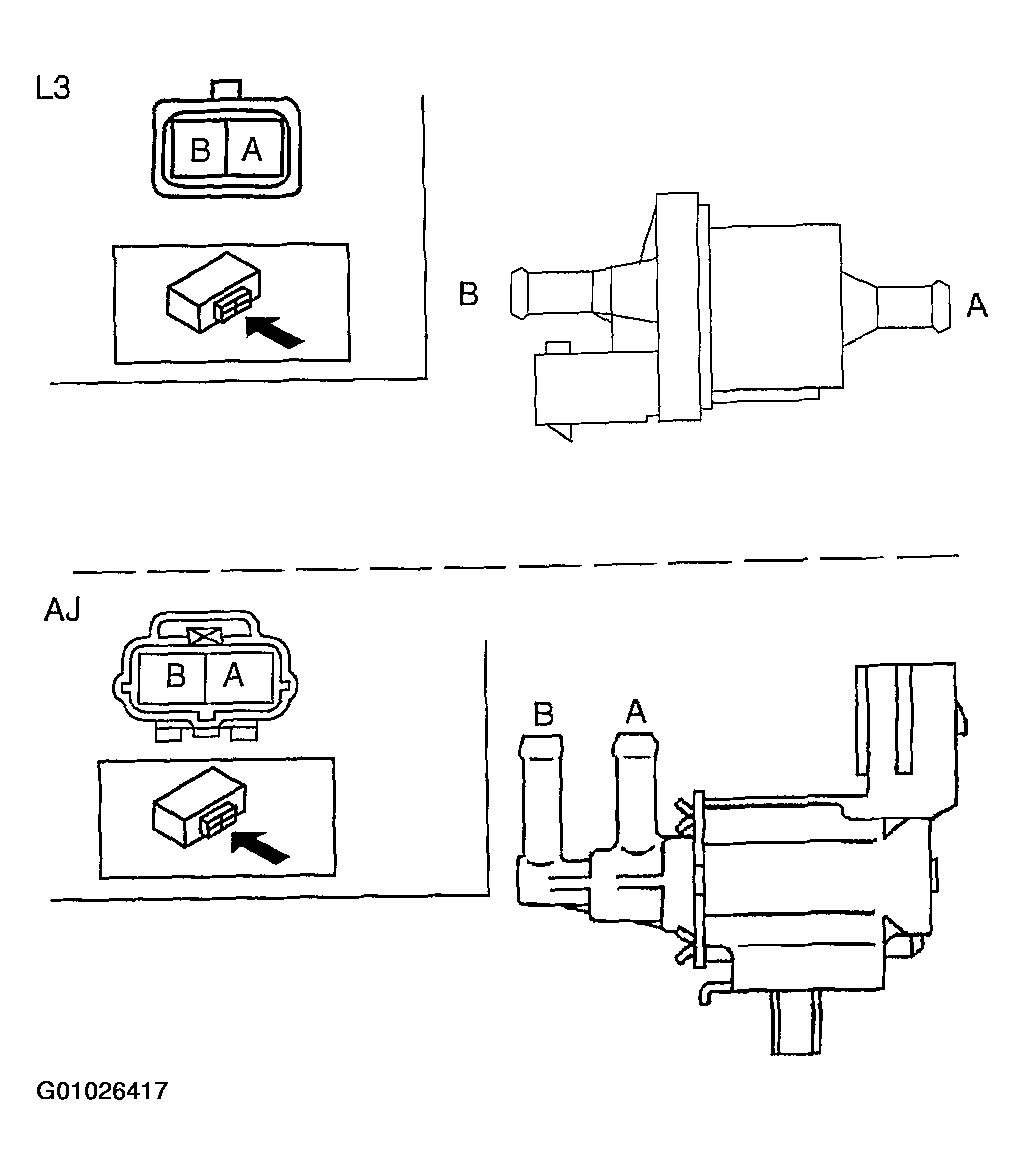

Fig 2: Identifying Purge Solenoid Valve Ports & Connector Terminals

Courtesy of MAZDA MOTORS CORP.
