Purge Solenoid Valve (AJ) Installation Note: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install in the order indicated in the table.

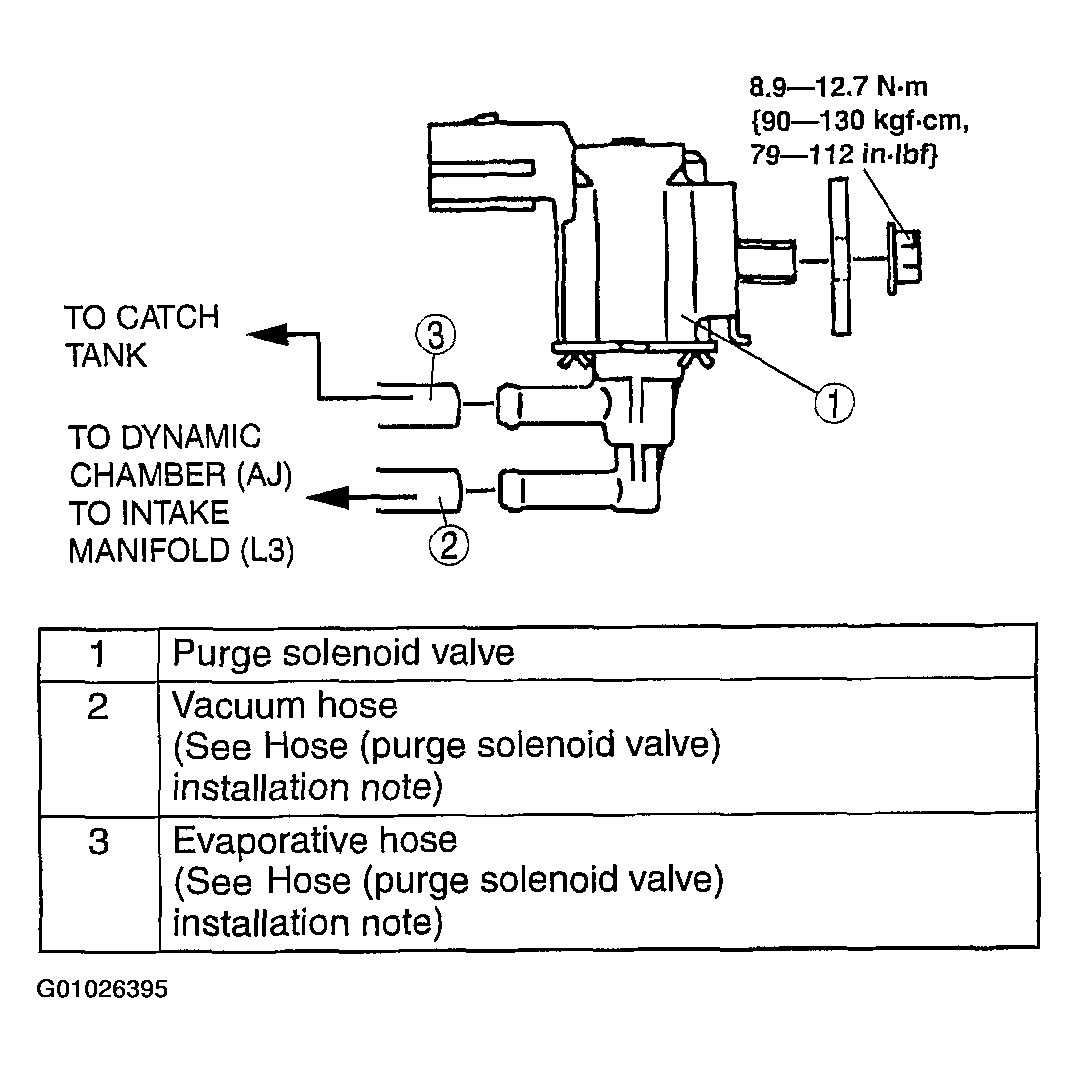

Fig 1: Removing/Installing Purge Solenoid Valve (AJ)
G01026395Courtesy of MAZDA MOTORS CORP.
