EGR Valve Removal/Installation [AJ]

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the vacuum hose.
Disconnect the EGR pipe.
Remove in the order indicated in the table.

Fig 1: Removal Order Of EGR Valve [AJ]
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

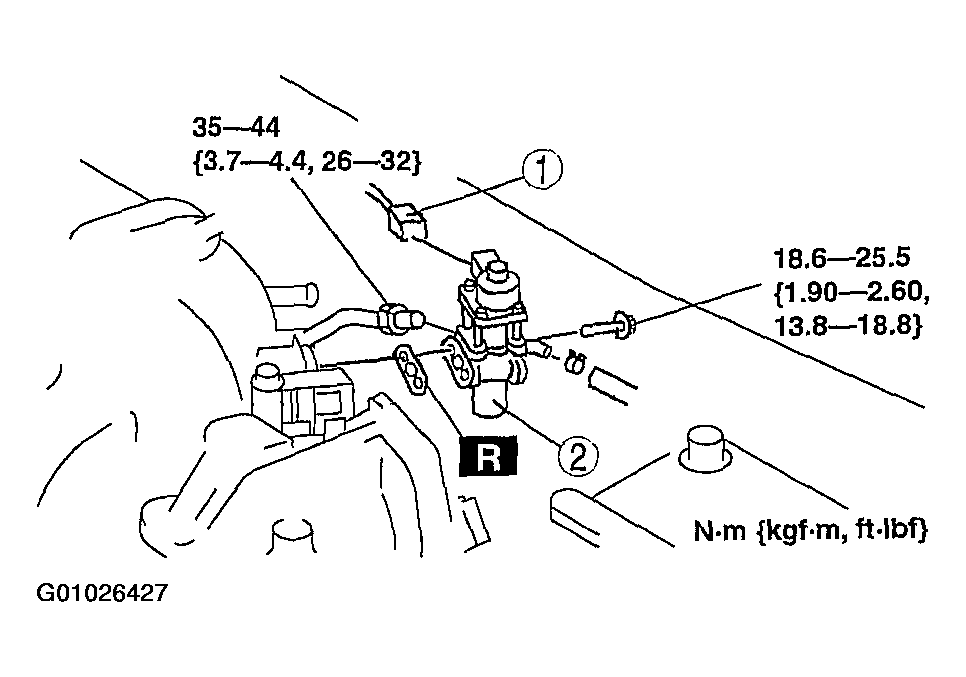

Fig 2: Removing/Installing EGR Valve [AJ]

Courtesy of MAZDA MOTORS CORP.
