Diagnostic Trouble Codes Table

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

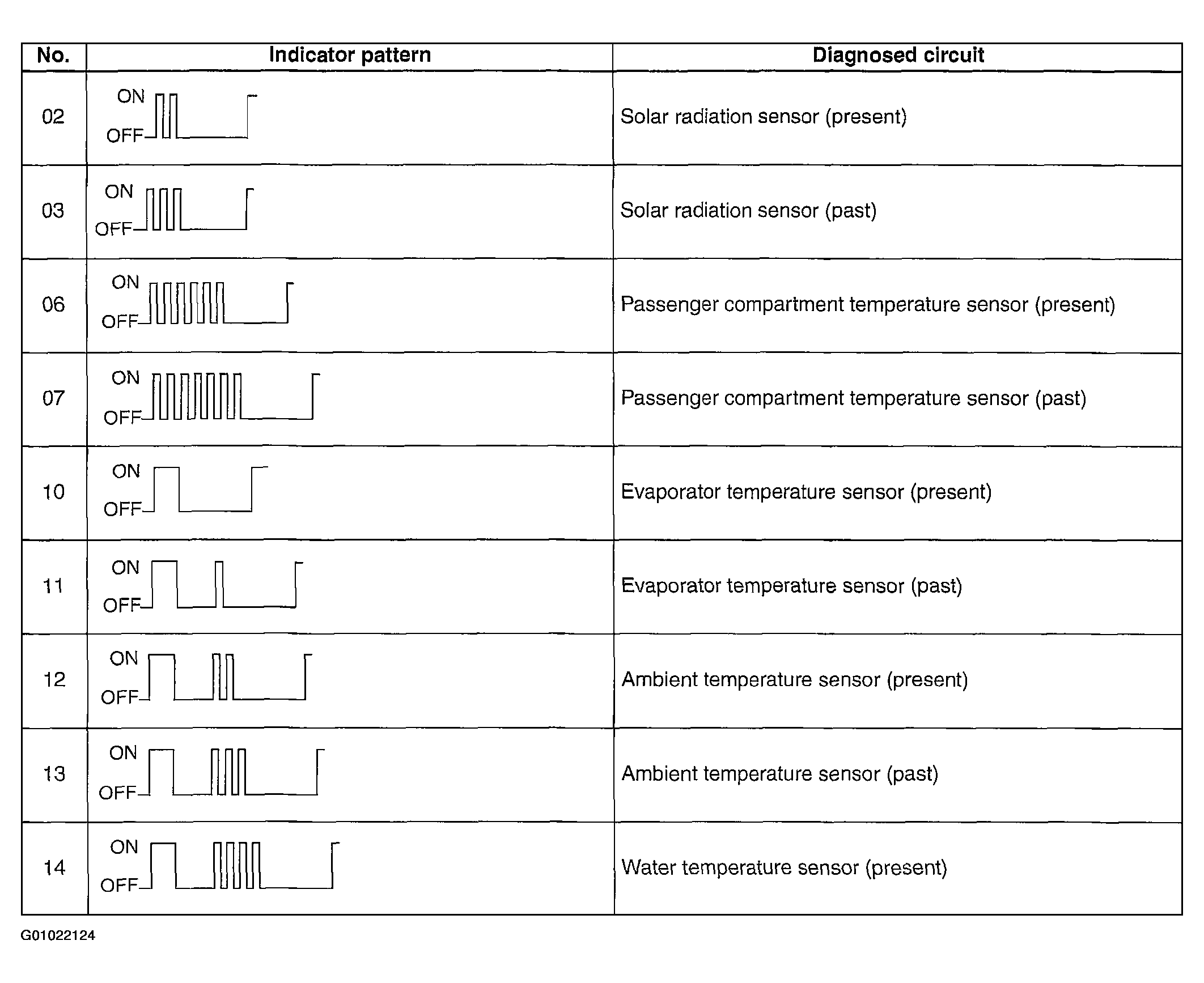

Fig 1: Diagnostic Trouble Code Table (DTC's 02, 03, 06, 07, 10, 11, 12, 13 & 14

Courtesy of MAZDA MOTORS CORP.

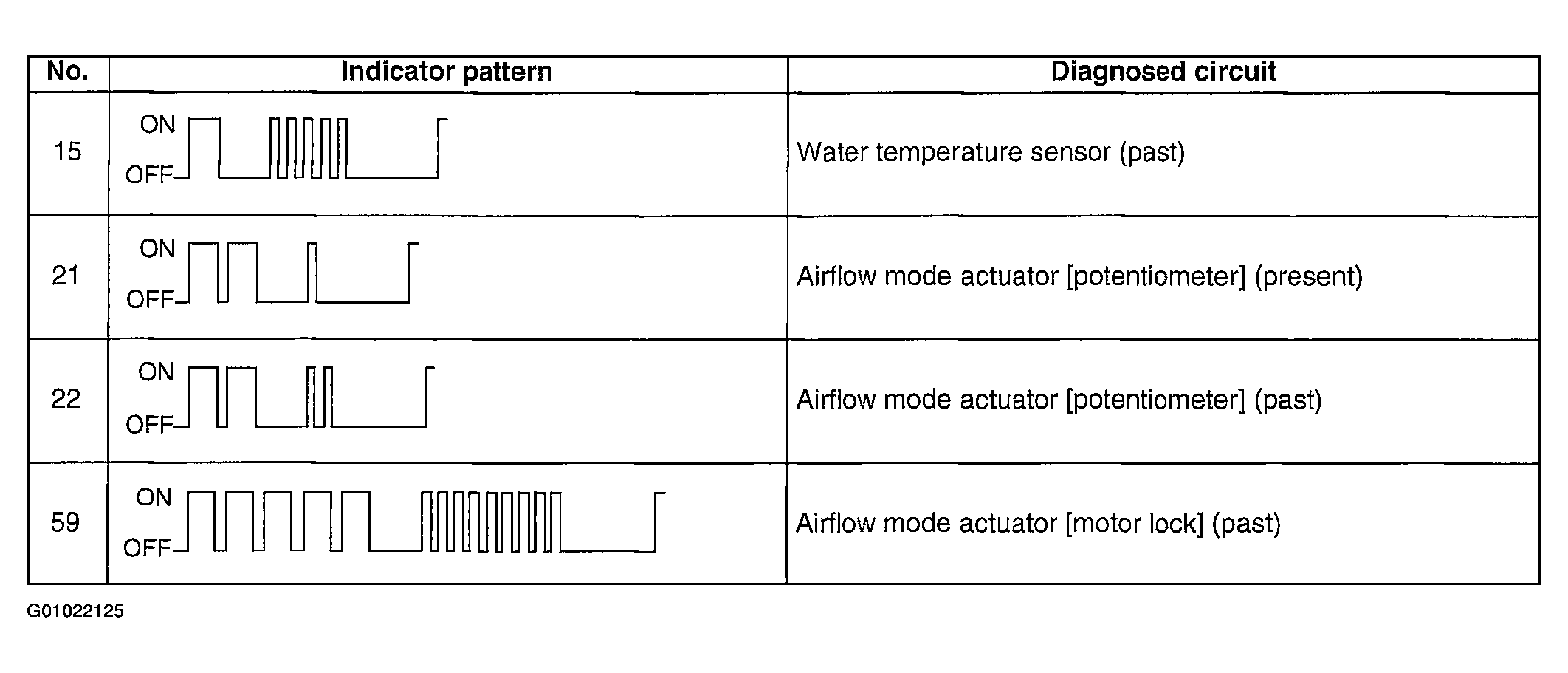

Fig 2: Diagnostic Trouble Code Table (DTC's 15, 21, 22 & 59)

Courtesy of MAZDA MOTORS CORP.
