Fixed Orifice Tube: Installation
WARNING: This page is about a different car, the 2001 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

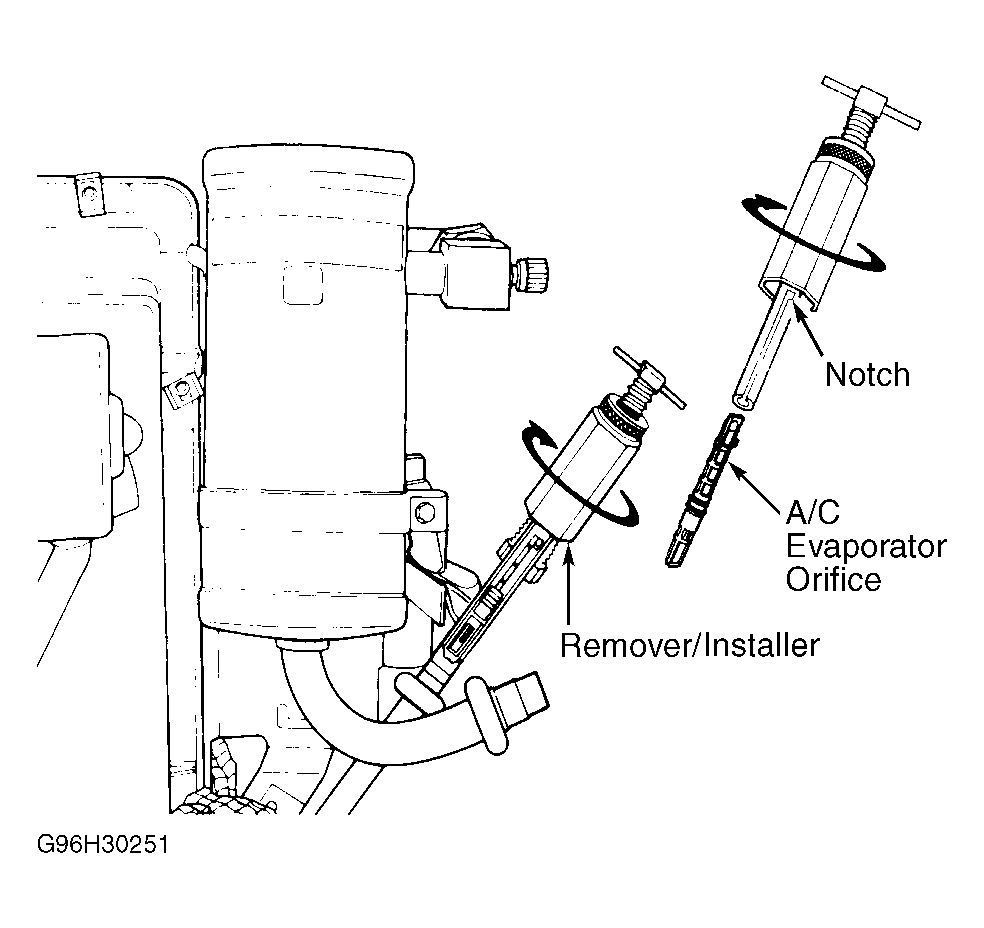

- Lubricate new "O" rings on fixed orifice tube with clean refrigerant oil. Place orifice tube in remover/installer, and insert into evaporator core tube until orifice tube is seated at stop.
- Remove remover/installer from orifice tube. Using a new "O" rings lubricated with clean refrigerant oil, connect liquid line to evaporator core tube. Evacuate, charge, and leak test A/C system. Check system for proper operation.
