Rear Door Trim Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable if equipped with a power window.
  2. Remove the regulator handle if equipped with a manual window.
  3. Remove the screw to remove the inner handle.
  4. Turn over the recess cover to remove the screw.
  5. Remove the fasteners.
  6. Pull the rear door trim to disengage clips A from the body.
  7. Pull the rear door trim upward to disengage hooks B from the body.
  8. Disconnect the connector if equipped with a power window.

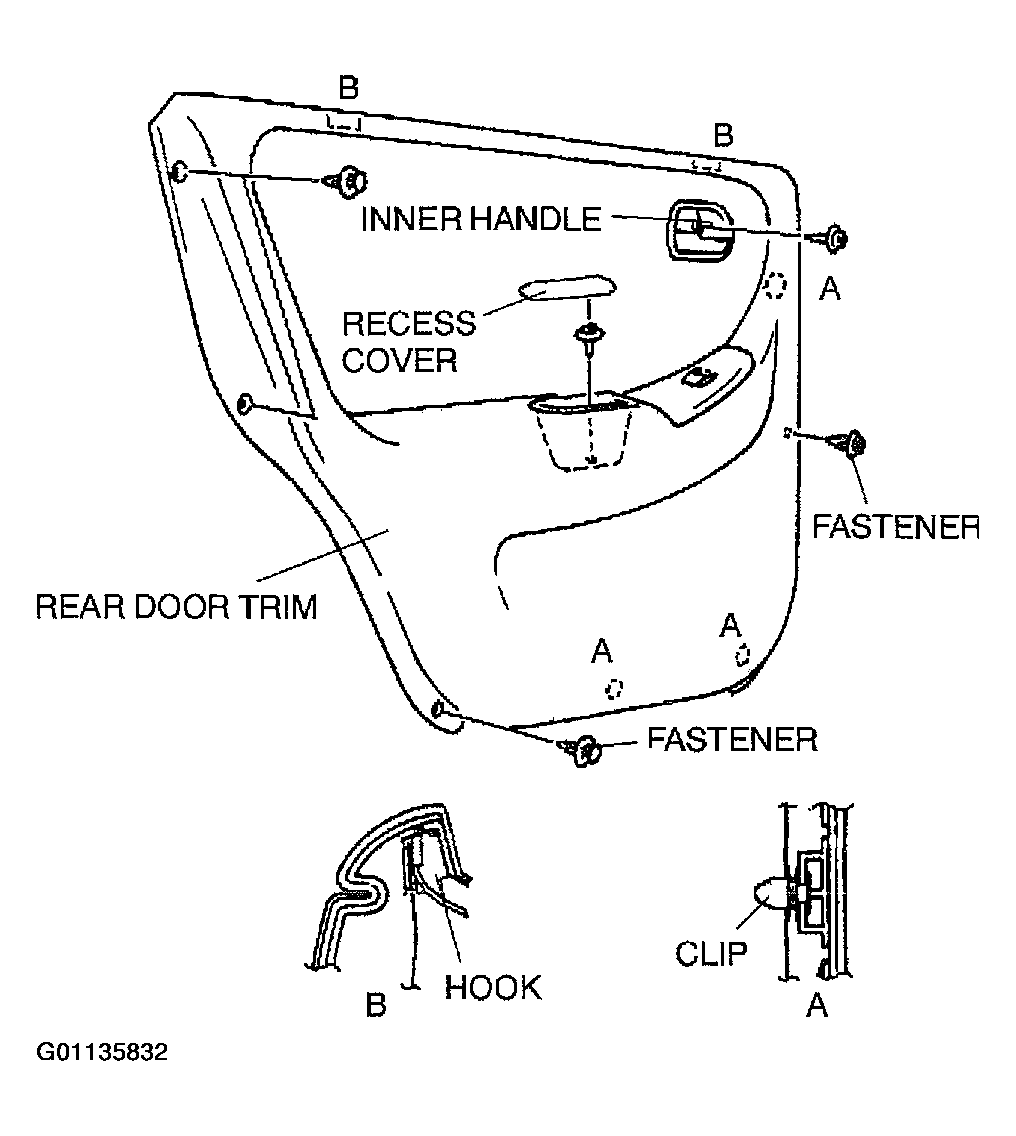

    Fig 1: Removing/Installing Rear Door Trim
    G01135832Courtesy of MAZDA MOTORS CORP.
  9. Install in the reverse order of removal.
