CIII 4.0L Pump Removal

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cooling fan.
  2. Remove the reservoir.
  3. Loosen the power steering pump pulley bolts.
    Fig 1: Loosening Power Steering Pump Pulley Bolts
    G02673437Courtesy of MAZDA MOTORS CORP.
  4. Remove the drive belt.
  5. Remove the power steering pump pulley.
    1. Remove the bolts.
    2. Remove the power steering pump pulley.
    Fig 2: Removing Power Steering Pump Pulley
    G02673438Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the power steering return line hose at the power steering fluid reservoir.
    1. Allow the system to drain.
    Fig 3: Disconnecting Power Steering Return Line Hose
    G02673439Courtesy of MAZDA MOTORS CORP.

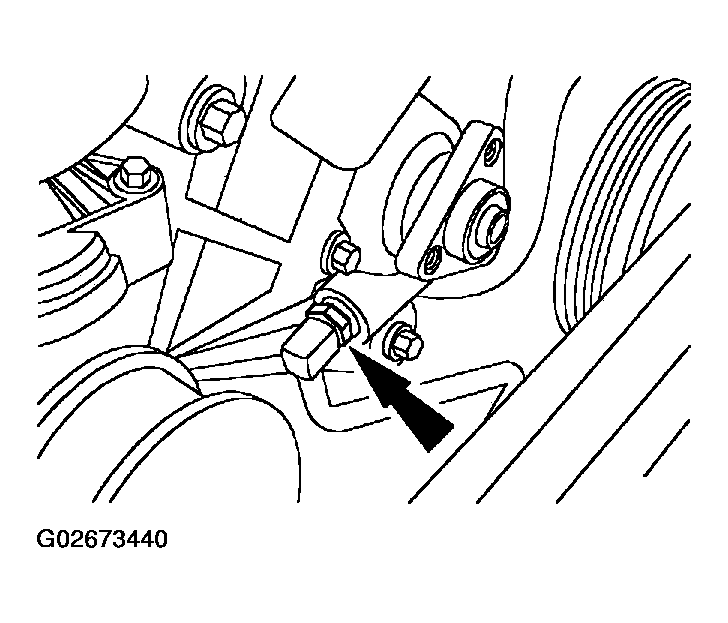

  7. Disconnect the power steering pressure hose from the power steering pump.
    Fig 4: Disconnecting Power Steering Pressure Hose
    G02673440Courtesy of MAZDA MOTORS CORP.
  8. Disconnect the power steering fluid reservoir outlet hose from the power steering pump.
    1. Compress and move the power steering fluid reservoir outlet hose clamp.
    2. Disconnect the power steering fluid reservoir outlet hose from the power steering pump.
    Fig 5: Disconnecting Power Steering Fluid Reservoir Outlet Hose
    G02673441Courtesy of MAZDA MOTORS CORP.
  9. Remove the power steering pump.
    1. Remove the bolts.
    2. Remove the power steering pump.
    Fig 6: Removing Power Steering Pump
    G02673442Courtesy of MAZDA MOTORS CORP.
