CII Pump Removal Note

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Remove the pump pulley. See POWER STEERING OIL PUMP PULLEY REMOVAL/INSTALLATION .
Disconnect the power steering pressure hose.

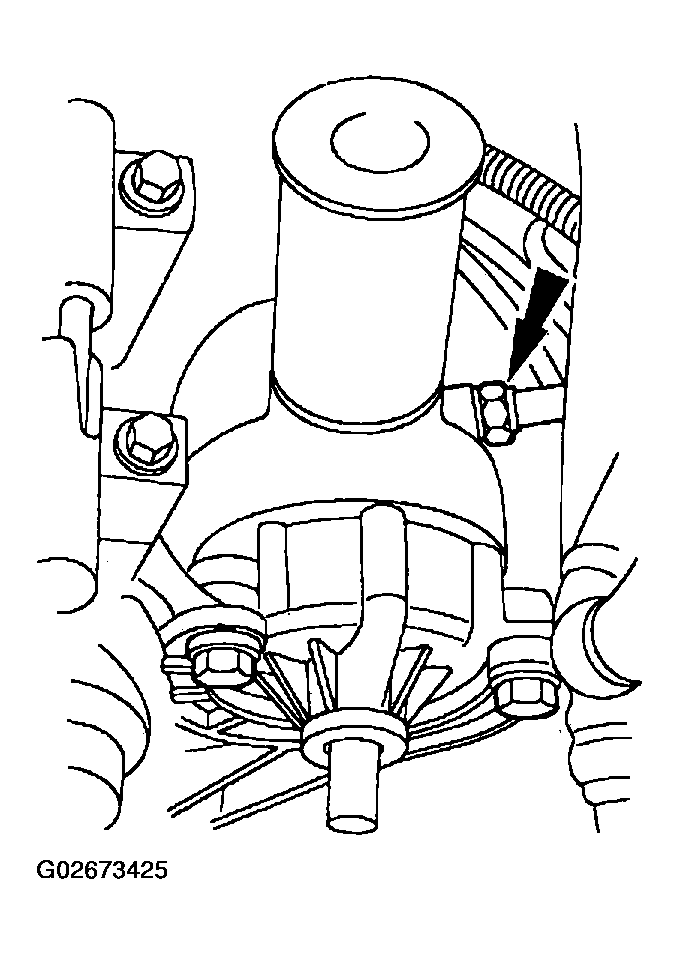

Fig 1: Disconnecting Power Steering Pressure Hose
Courtesy of MAZDA MOTORS CORP.
Disconnect the power steering return hose.

Fig 2: Disconnecting Power Steering Return Hose
Courtesy of MAZDA MOTORS CORP.
Disconnect the power steering return line hose.
Remove the bolts and the power steering pump.

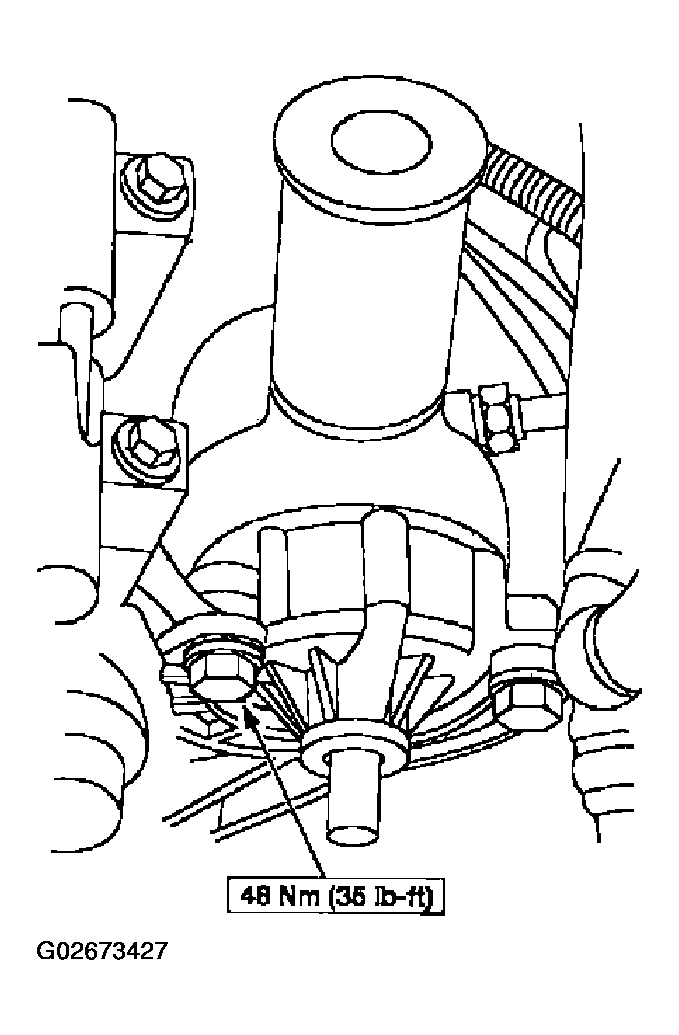

Fig 3: Removing Power Steering Pump
Courtesy of MAZDA MOTORS CORP.
