4.0L Removal

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cooling fan.
  2. Loosen the power steering pump pulley bolts.
    Fig 1: Loosening Power Steering Pump Pulley Bolts
    G02673423Courtesy of MAZDA MOTORS CORP.
  3. Remove the drive belt.
  4. Remove the bolts and the power steering pump pulley.

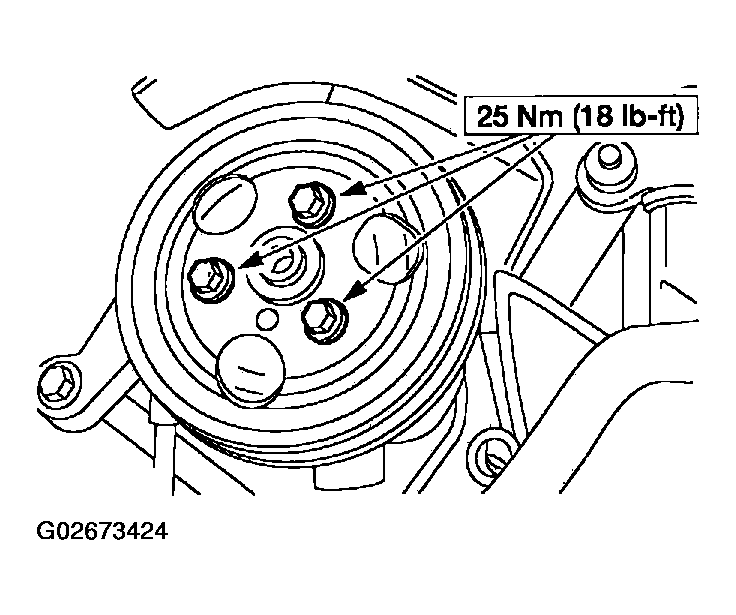

    Fig 2: Removing Bolts & Power Steering Pump Pulley
    G02673424Courtesy of MAZDA MOTORS CORP.
