2.3L & 3.0L Installation

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Replacement of the power steering pump pulley is necessary after being removed and installed two times.
  1. Install the power steering pump pulley.
    1. Inspect the pulley for paint marks in the web area near the hub. If there are two paint marks, discard the pulley. If there is no paint or one paint mark, use a paint pencil to mark the web area of the pulley near the hub.
    2. Use the Power Steering Pump Pulley Replacer Tool 211-185 (T91P-3A-733A) or equivalent.

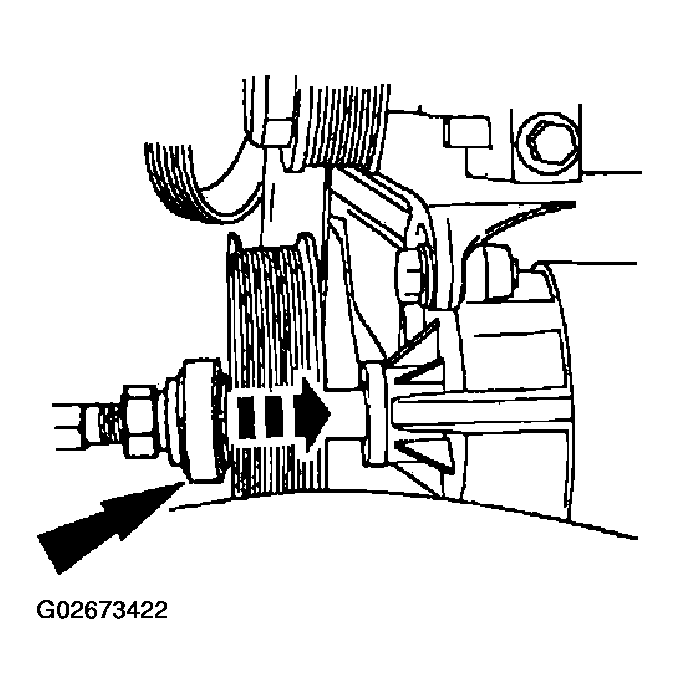

    Fig 1: Installing Power Steering Pump Pulley
    G02673422Courtesy of MAZDA MOTORS CORP.
  2. Install the drive belt.
