Power Steering

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. External Leak Check
    1. With the ignition switch at OFF, wipe off the power steering pump, power steering pressure hose, power steering return hose, power steering fluid cooler and hose assembly and steering gear.
    2. With the engine running, turn the steering wheel from stop to stop several times. Check for leaks. Repair as necessary if leaks are observed.

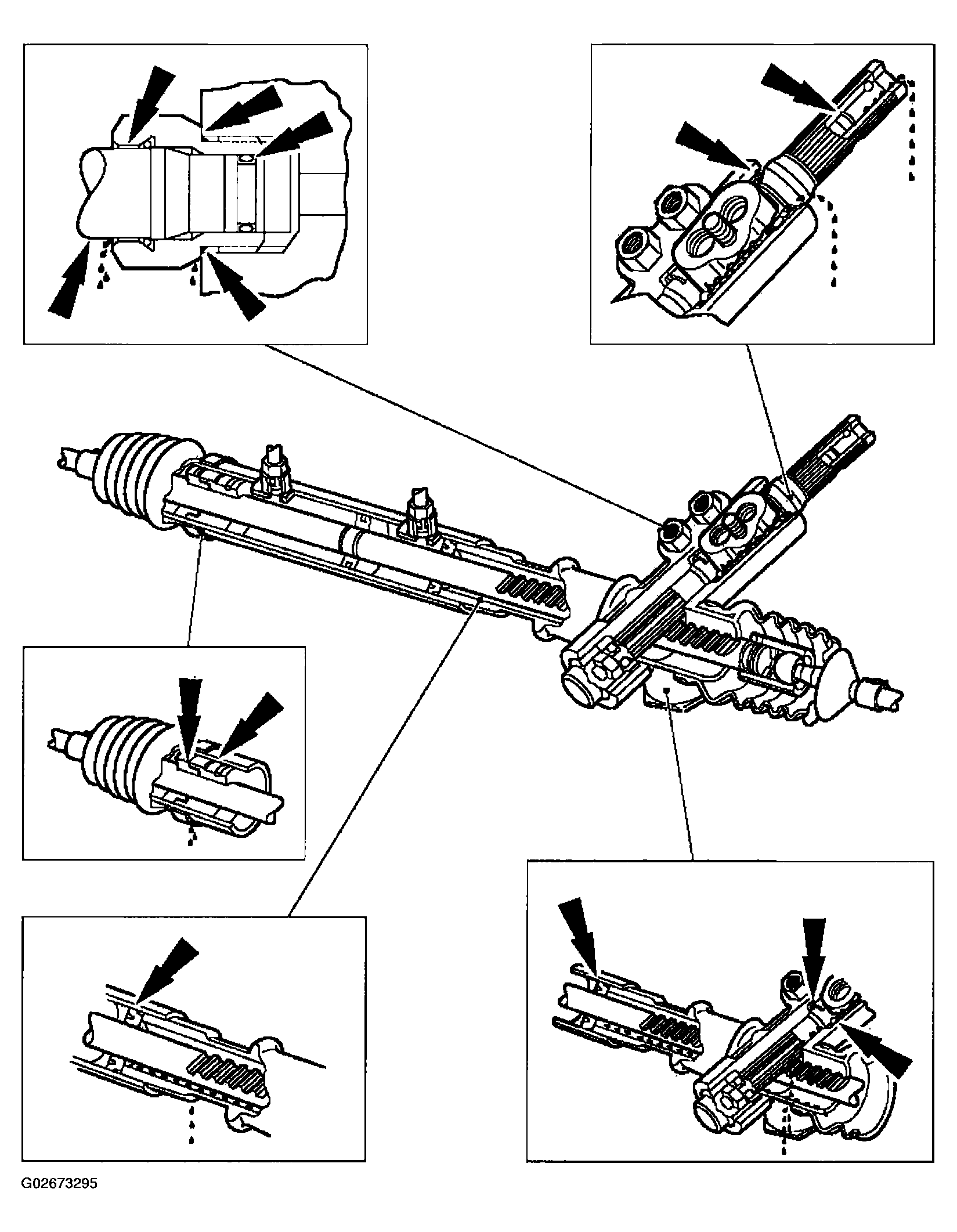

    Fig 1: Identifying Possible Leak Points
    G02673295Courtesy of MAZDA MOTORS CORP.
    2. CAUTION: Do not hold the steering wheel against the stops for more than three to five seconds at a time. Damage to the power steering pump could occur.
  2. Turning Effort Check
    1. Perform Turning Effort Test. See POWER STEERING SYSTEM INSPECTION .
  3. Visually inspect for obvious signs of mechanical damage; refer to the following chart.

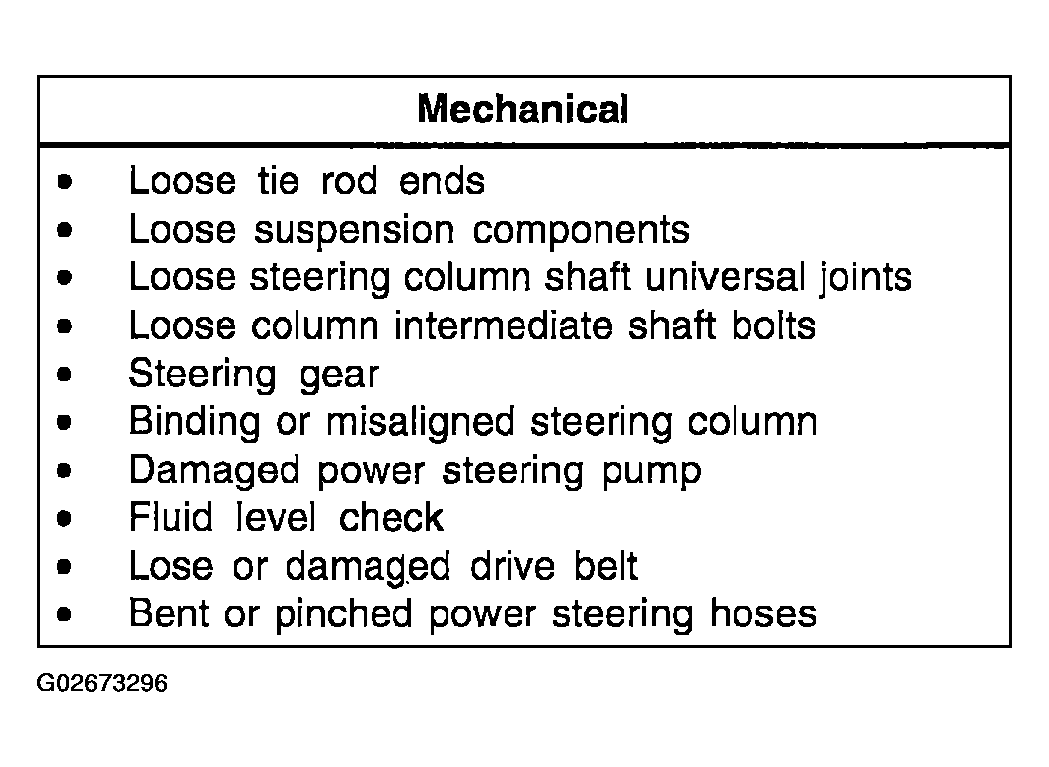

    Fig 2: Visual Mechanical Inspection Chart
    G02673296Courtesy of MAZDA MOTORS CORP.
  4. If an obvious cause for an observed or reported malfunction is found, correct the cause (if possible) before proceeding to the next step.
  5. If the fault is not visually evident, determine the symptom and proceed to the following symptom chart. See Figure-Figure .
