Rear Wiper and Washer Switch

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

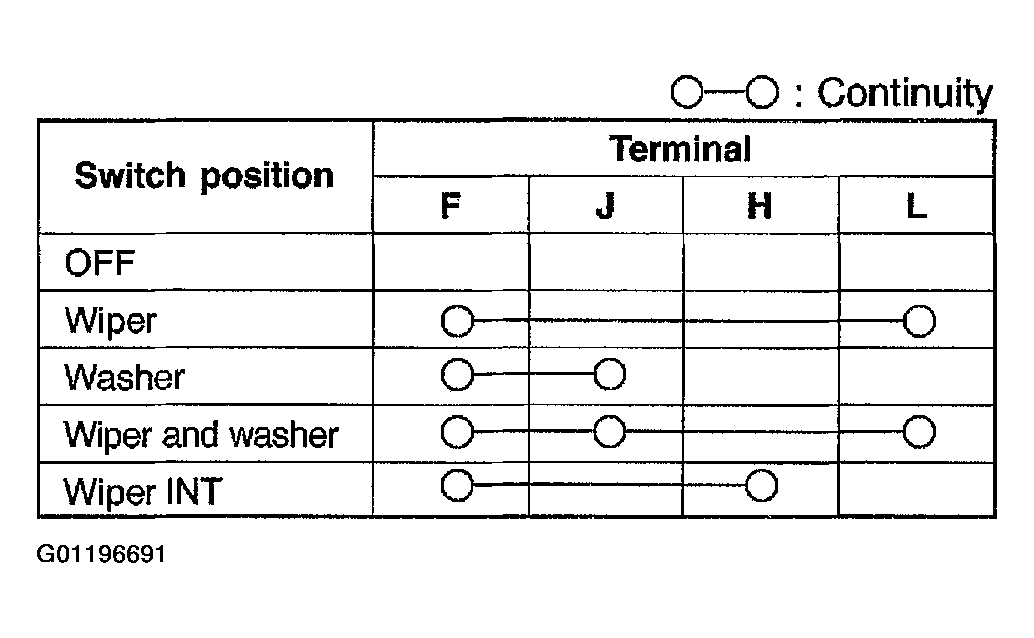

Fig 1: Rear Wiper/Washer Switch Continuity Check

Courtesy of MAZDA MOTORS CORP.

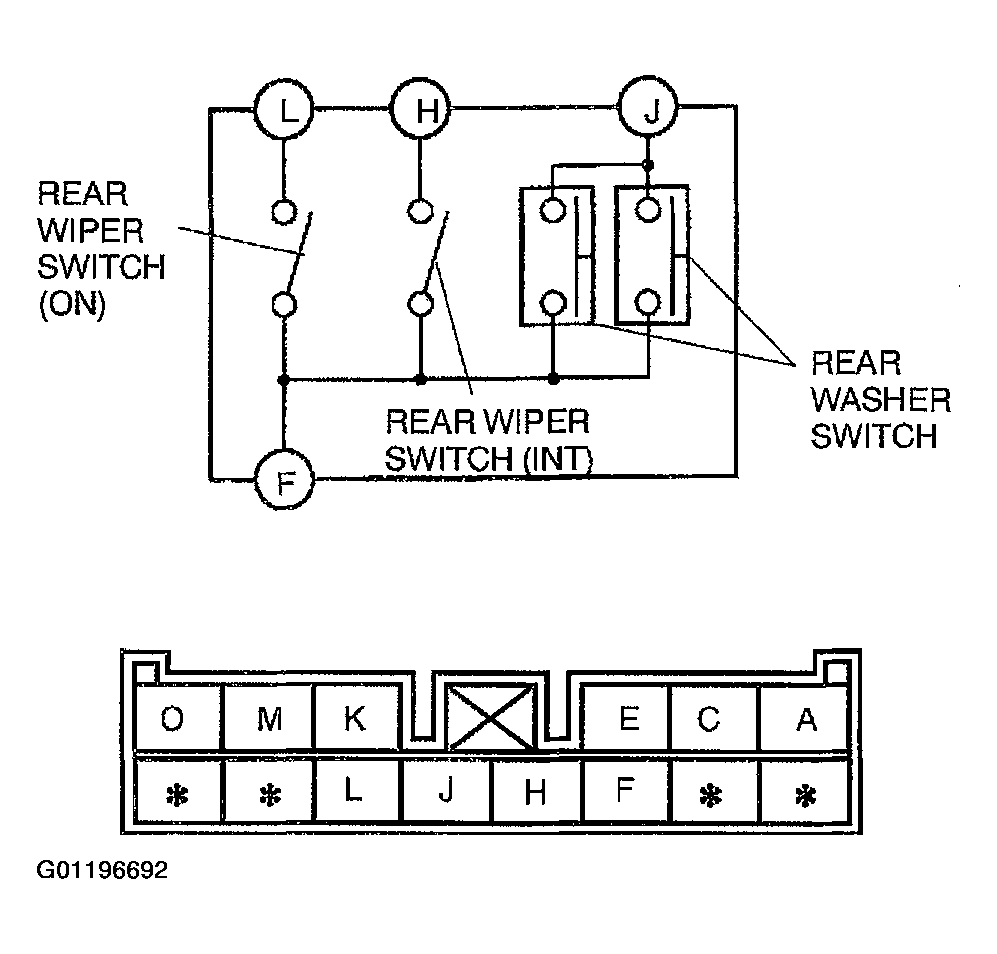

Fig 2: Identifying Rear Wiper/Washer Switch Terminals & Circuit

Courtesy of MAZDA MOTORS CORP.
