Washer Tank Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Partially peel off the right side mud guard.
Remove in the order indicated in the illustration.

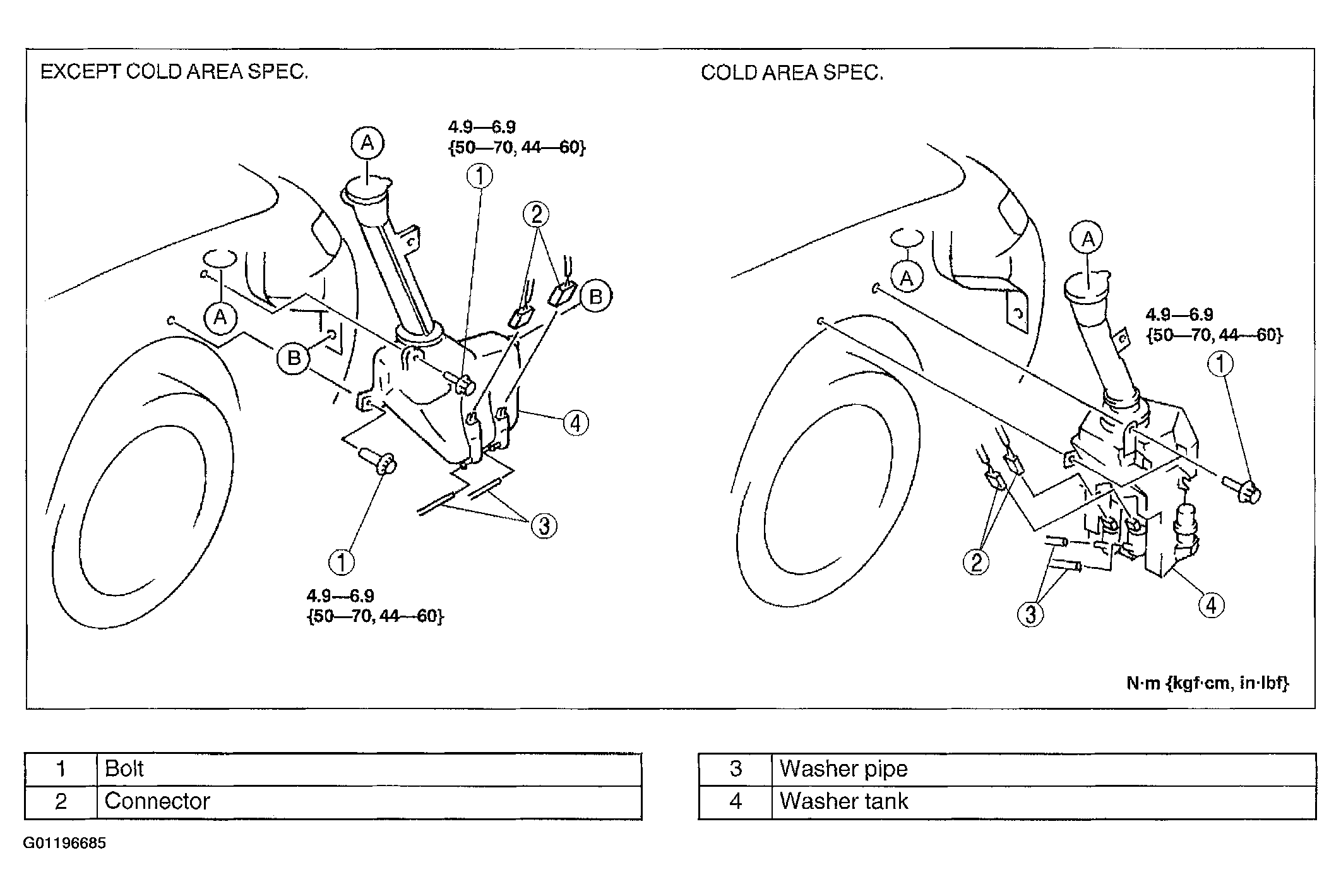

Fig 1: Removing/Installing Washer Tank
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
