Rear Wiper Arm And Blade Removal/Installation: Notes

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the illustration.
Install in the reverse order of removal.
Adjust the rear wiper arm and blade. See REAR WIPER ARM AND BLADE ADJUSTMENT .

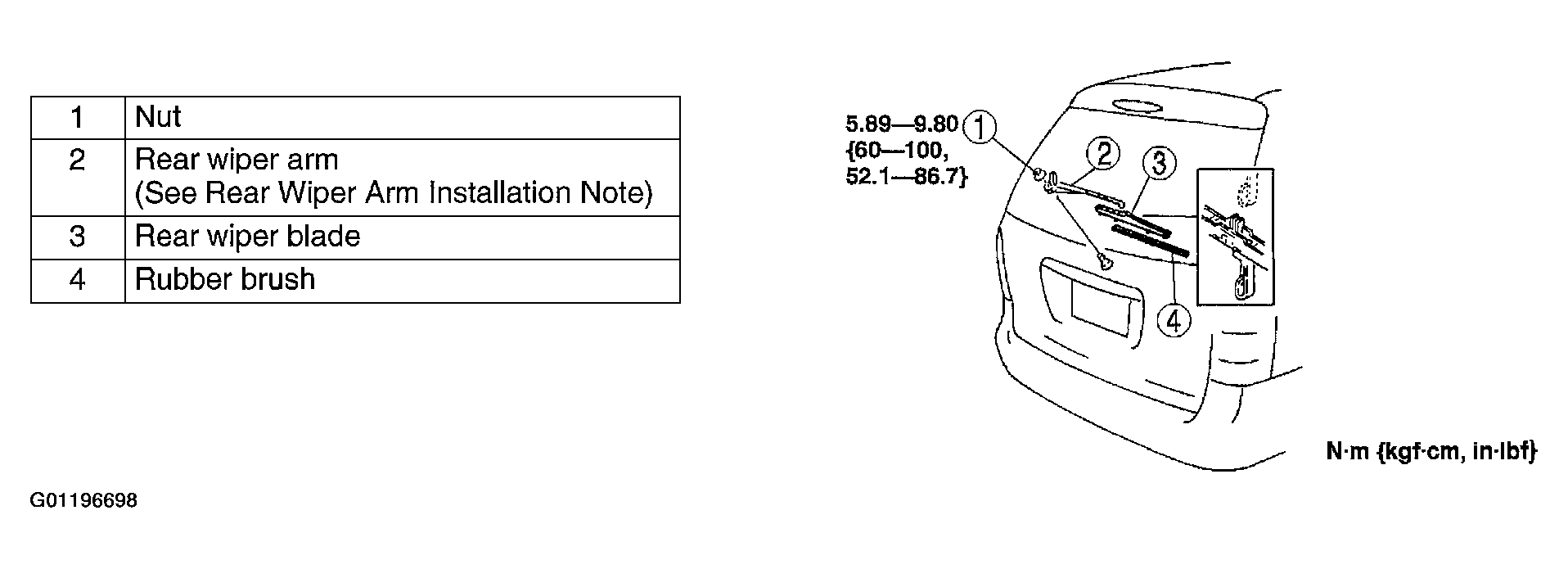

Fig 1: Removing/Installing Rear Wiper Arm & Blade

Courtesy of MAZDA MOTORS CORP.
