Rear Washer Hose Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the headliner. See HEADLINER REMOVAL/INSTALLATION .
  3. Remove the rear washer hose from the clips.
  4. Remove the door lock control module. See DOOR LOCK CONTROL MODULE .
  5. Remove the bolts mounting the PCM. See POWERTRAIN CONTROL MODULE .

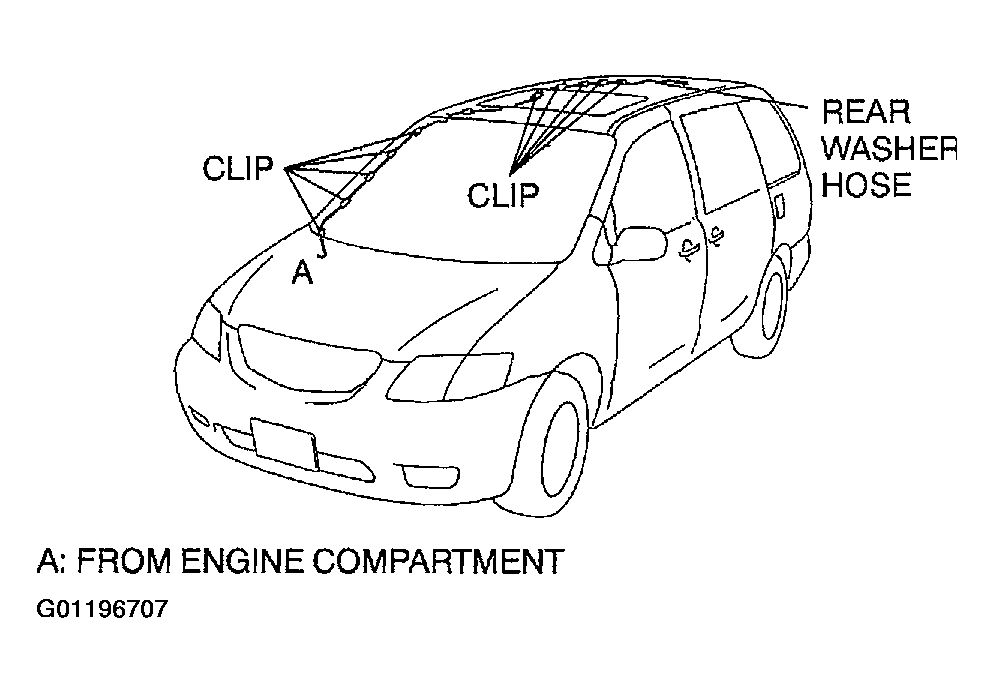

    Fig 1: Removing/Installing Rear Washer Hose
    G01196707Courtesy of MAZDA MOTORS CORP.

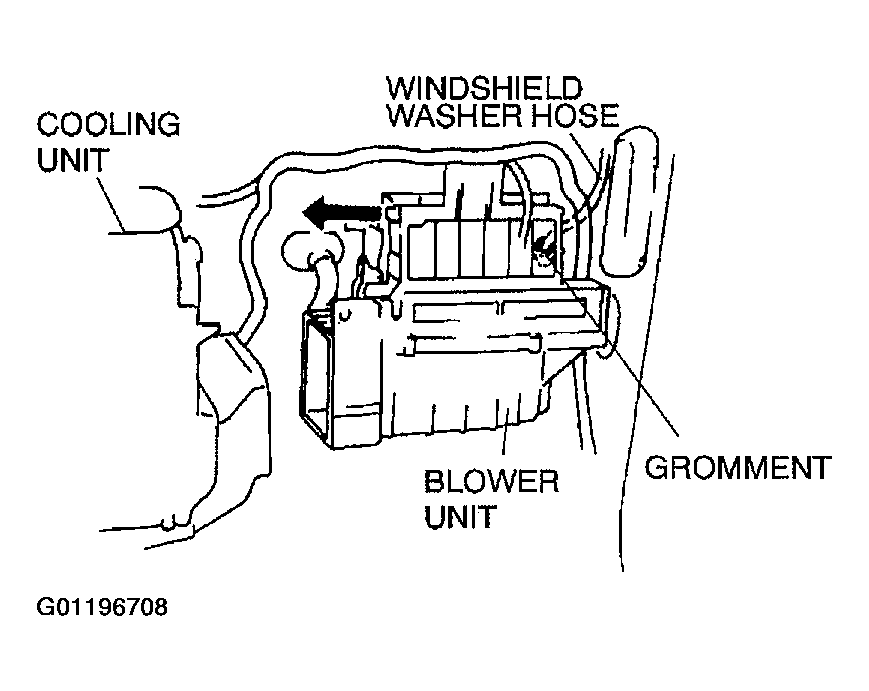

    Fig 2: Identifying Rear Washer Hose Grommet
    G01196708Courtesy of MAZDA MOTORS CORP.
  6. Remove the bolts mounting the blower unit. See FRONT BLOWER MOTOR REMOVAL/INSTALLATION .
  7. Move the blower unit to the cooling unit side.
  8. Remove the grommet of the rear washer hose.
  9. Partially peel off the right side mud guard and remove the rear washer hose from the clip.
  10. Remove the rear washer hose from the washer tank.
  11. Install in the reverse order of removal.
Fig 3: Removing Rear Washer Hose From Washer Tank
G01196709Courtesy of MAZDA MOTORS CORP.
