Steering Gear And Linkage Assembly: Notes
WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Place copper plates, rag, or similar material in a vise when securing the mounting bracket portion of the steering gear.

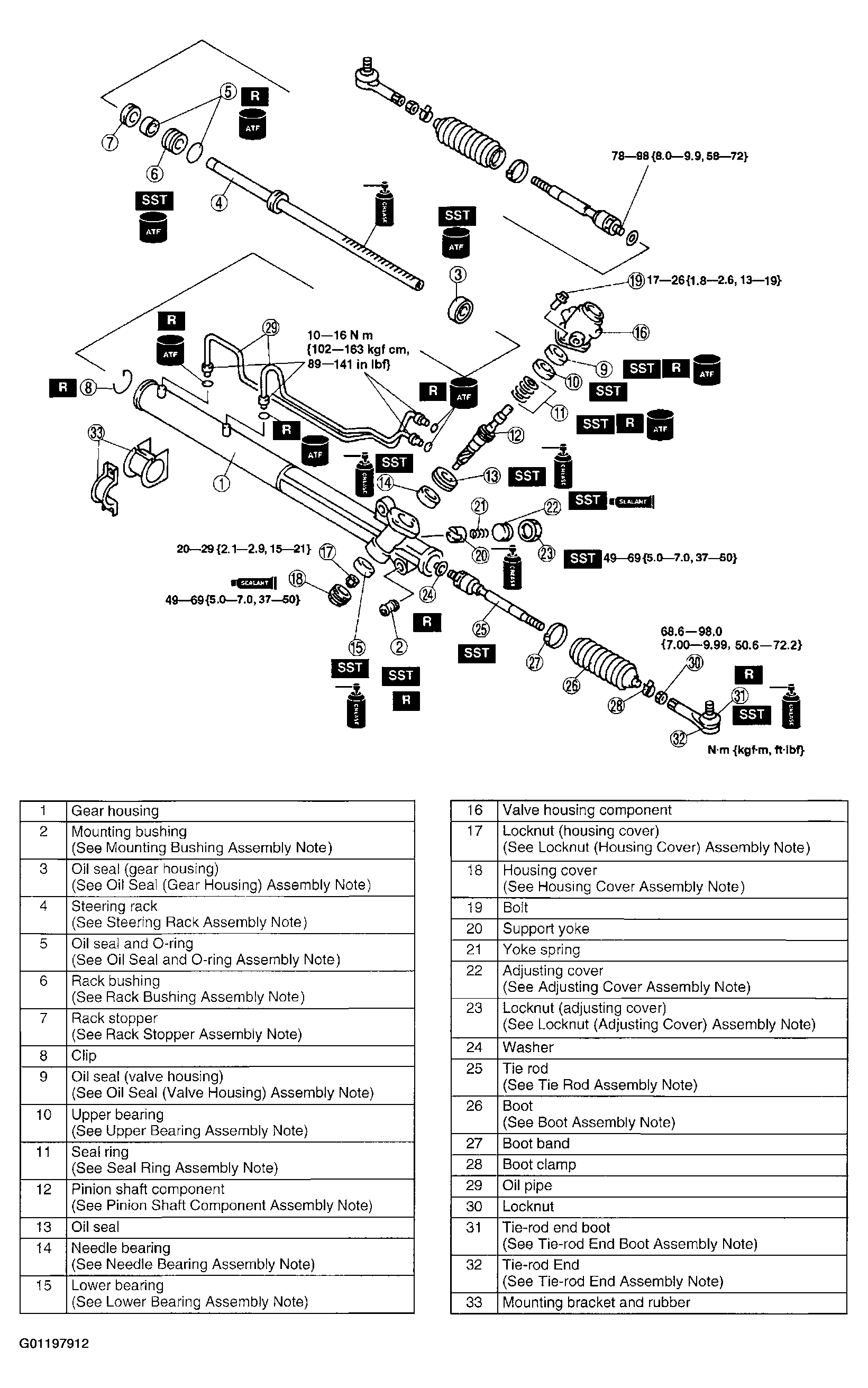

- Assemble in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP.
