Power Steering Oil Pump Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the illustration.

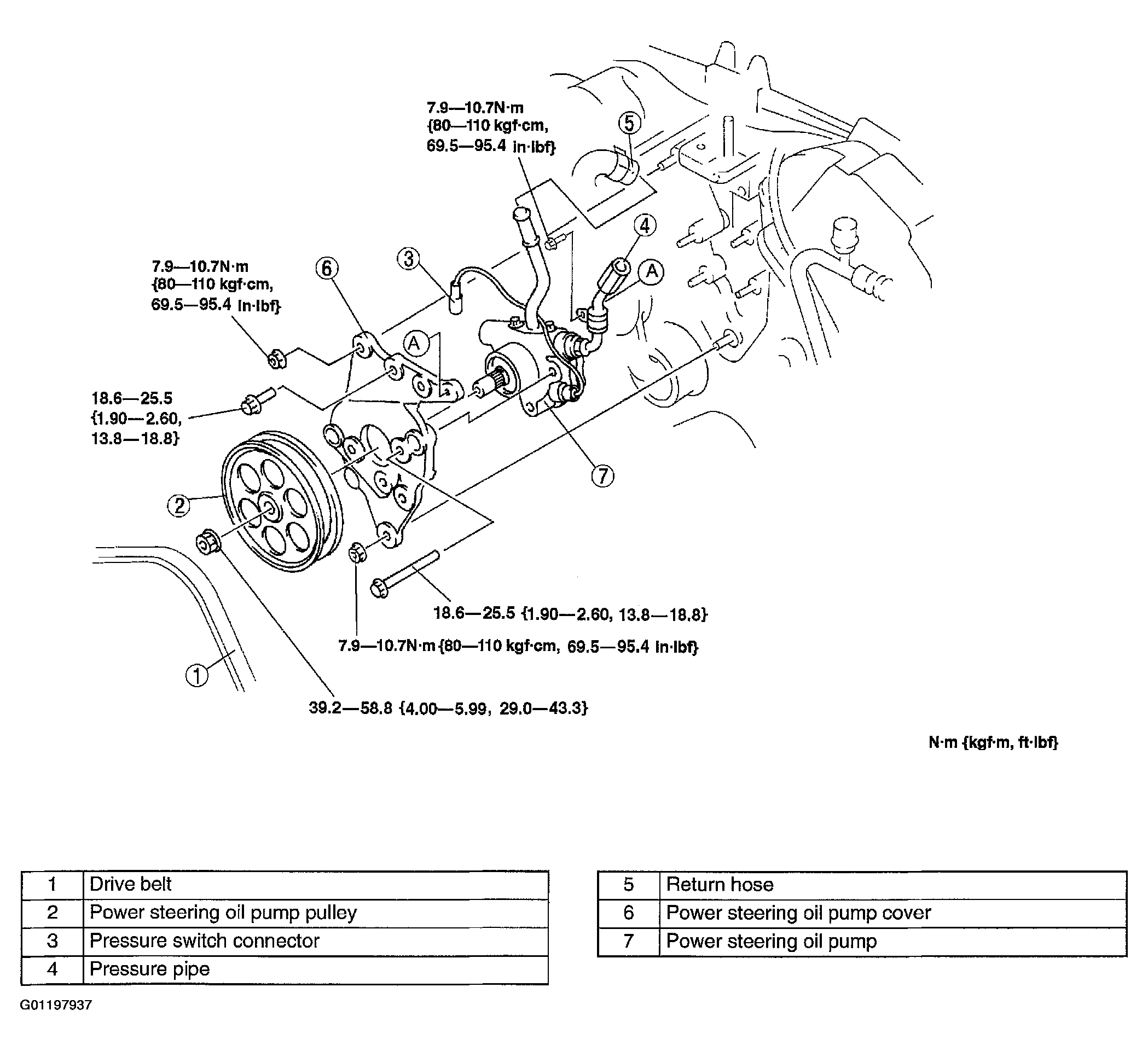

    Fig 1: Removing/Installing Power Steering Oil Pump
    G01197937Courtesy of MAZDA MOTORS CORP.
  2. Remove the No. 3 engine joint bracket. See ENGINE REMOVAL/INSTALLATION .
  3. Install in the reverse order of removal.
  4. Adjust the No. 3 joint bracket. See ENGINE REMOVAL/INSTALLATION .
