Front Bumper Removal/Installation: Notes

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the radiator grille.
  3. Remove the front combination light. See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .
  4. Disconnect the front fog light connector.
  5. Remove in the order indicated in the illustration.

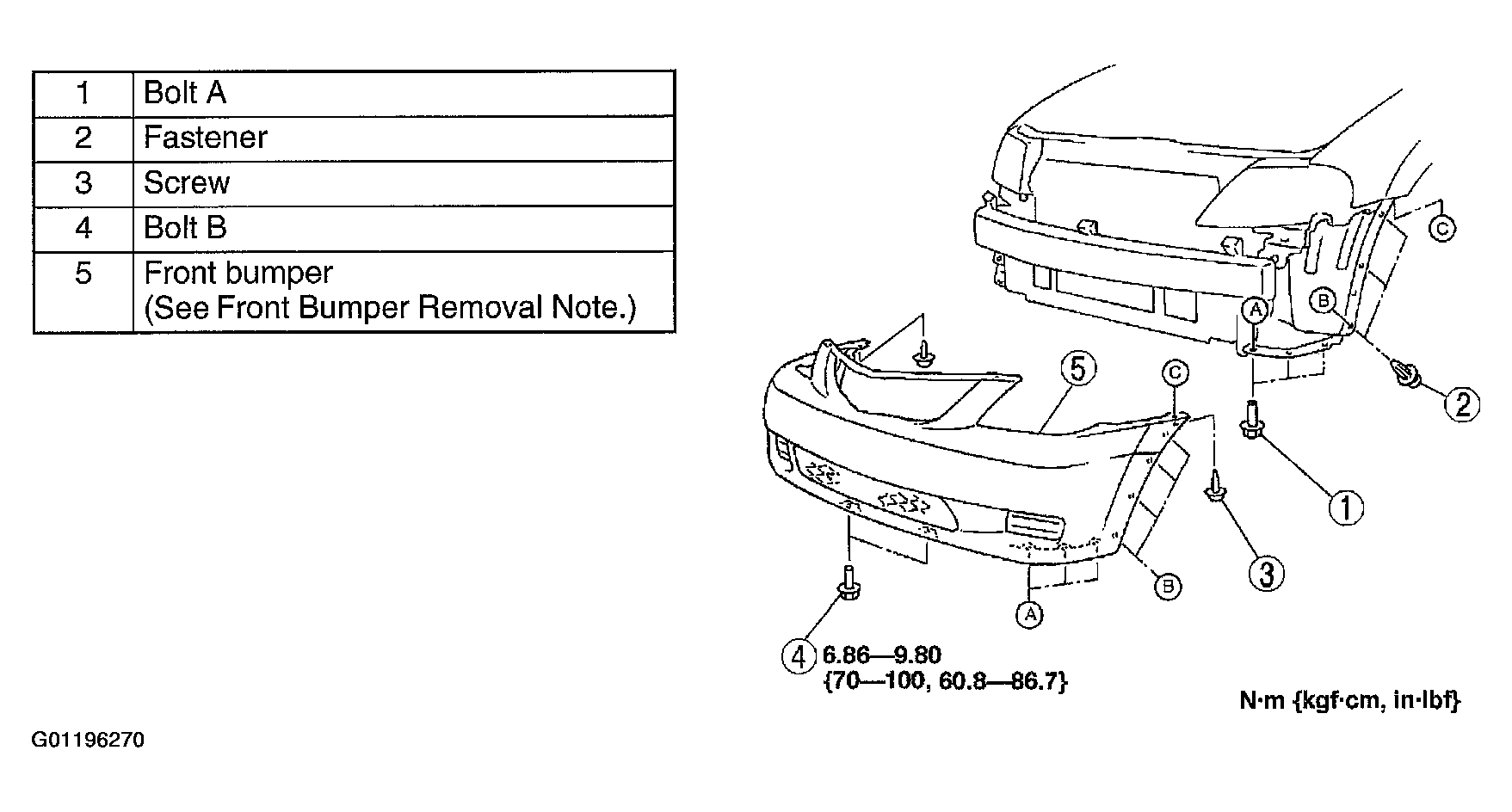

    Fig 1: Removing Front Bumper
    G01196270Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
