Third-Row Seat Belt Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The Emergency Locking Retractor (ELR) has a spring that will unwind if the retractor's cover is removed. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.
  1. Remove the rear side trim. See REAR SIDE TRIM REMOVAL/INSTALLATION .
  2. Remove in the order indicated in the illustration.
  3. Install in the reverse order of removal.

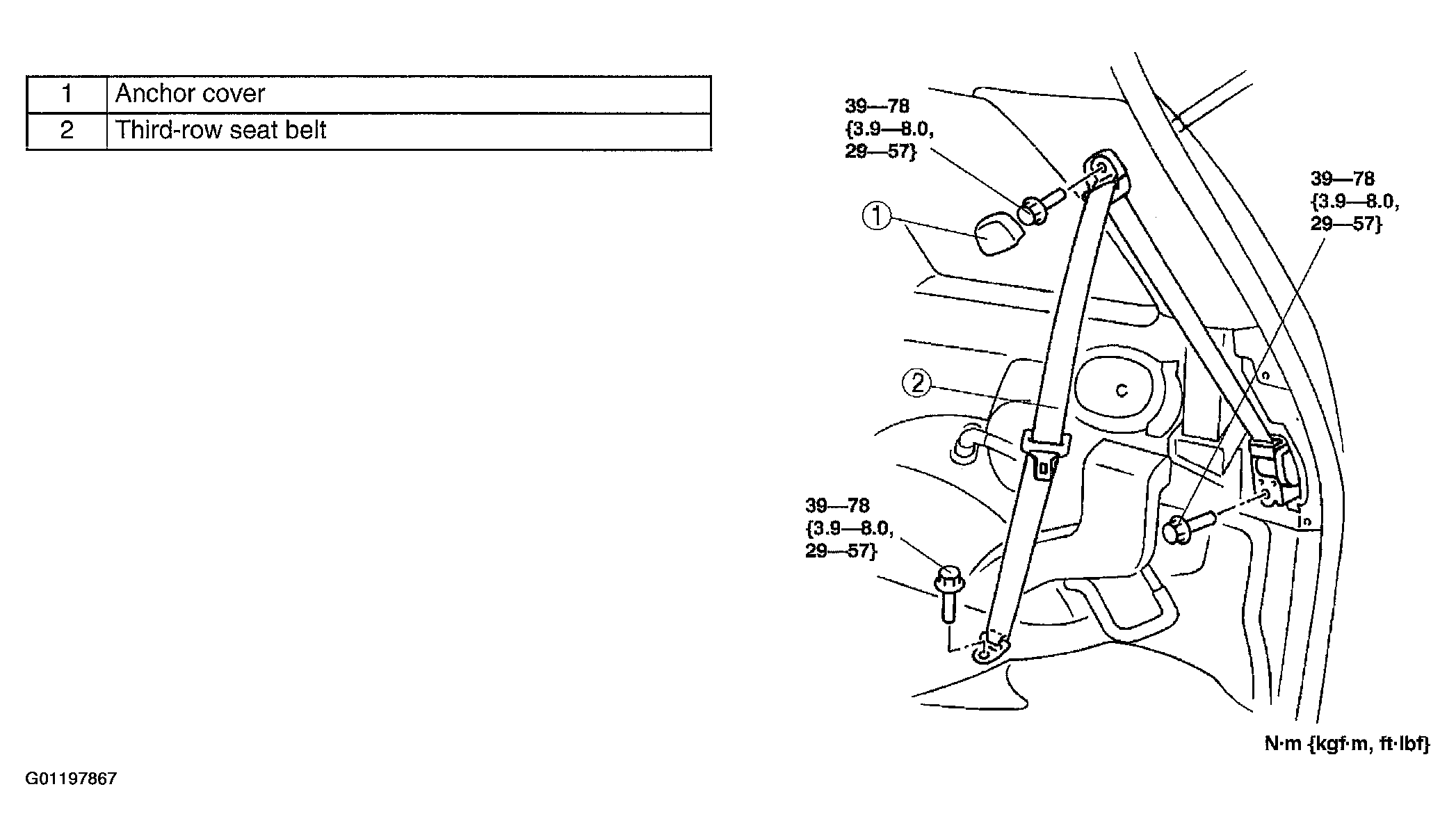

    Fig 1: Removing Third-Row Seat Belt
    G01197867Courtesy of MAZDA MOTORS CORP.
