Long Slider And Adapter Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the second-row seat. See SECOND-ROW SEAT REMOVAL .
Remove the front floor covering. See FRONT FLOOR COVERING REMOVAL/INSTALLATION .
Remove in the order indicated in the illustration.
Install in the reverse order of removal.

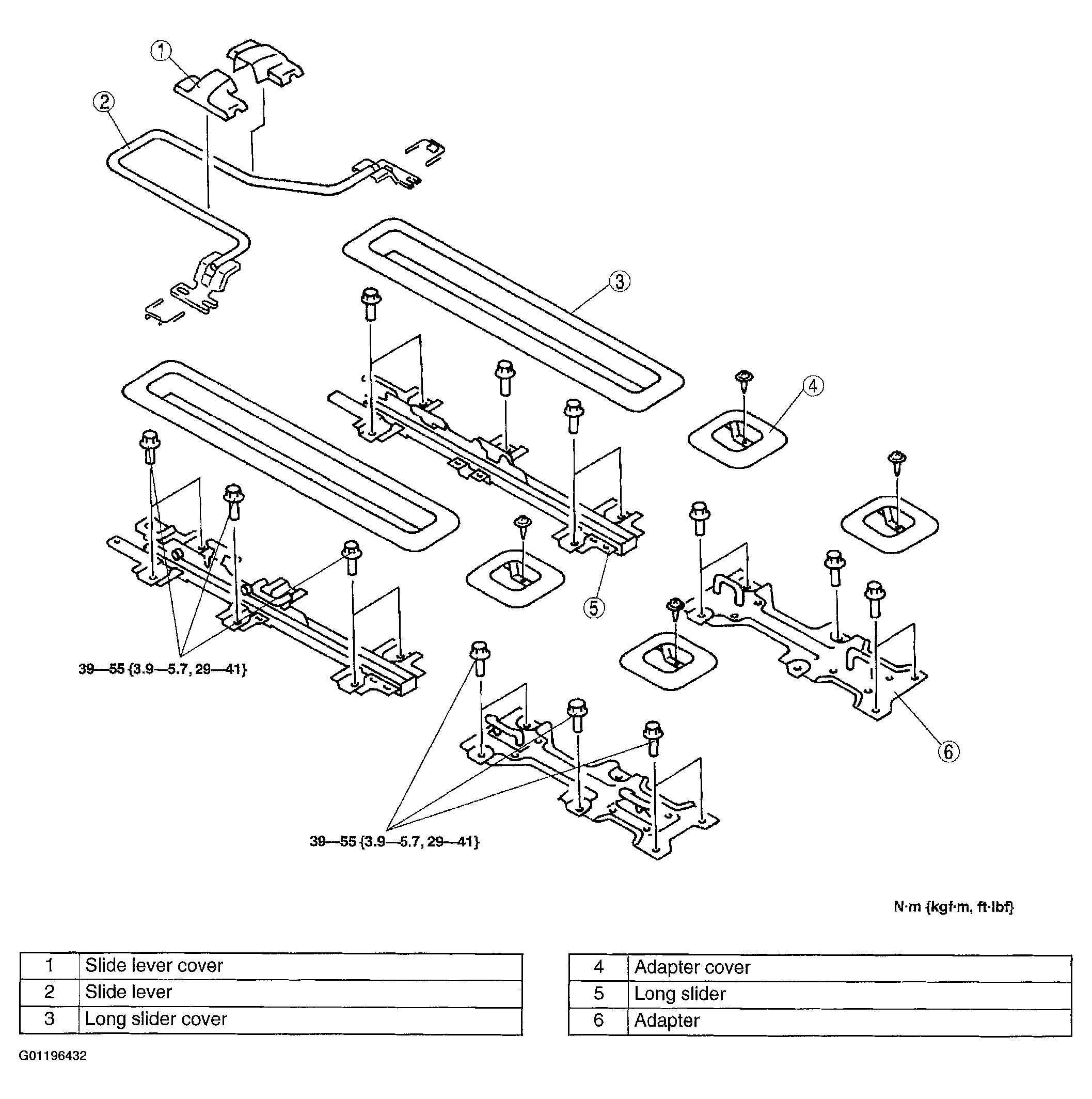

Fig 1: Removing Long Slider

Courtesy of MAZDA MOTORS CORP.
