Power Sliding Door (PSD) Front Switch Inspection

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the PSD front switch.
  2. Inspect for continuity between the PSD front switch terminals using an ohmmeter.
    • If not as specified, replace the PSD front switch.

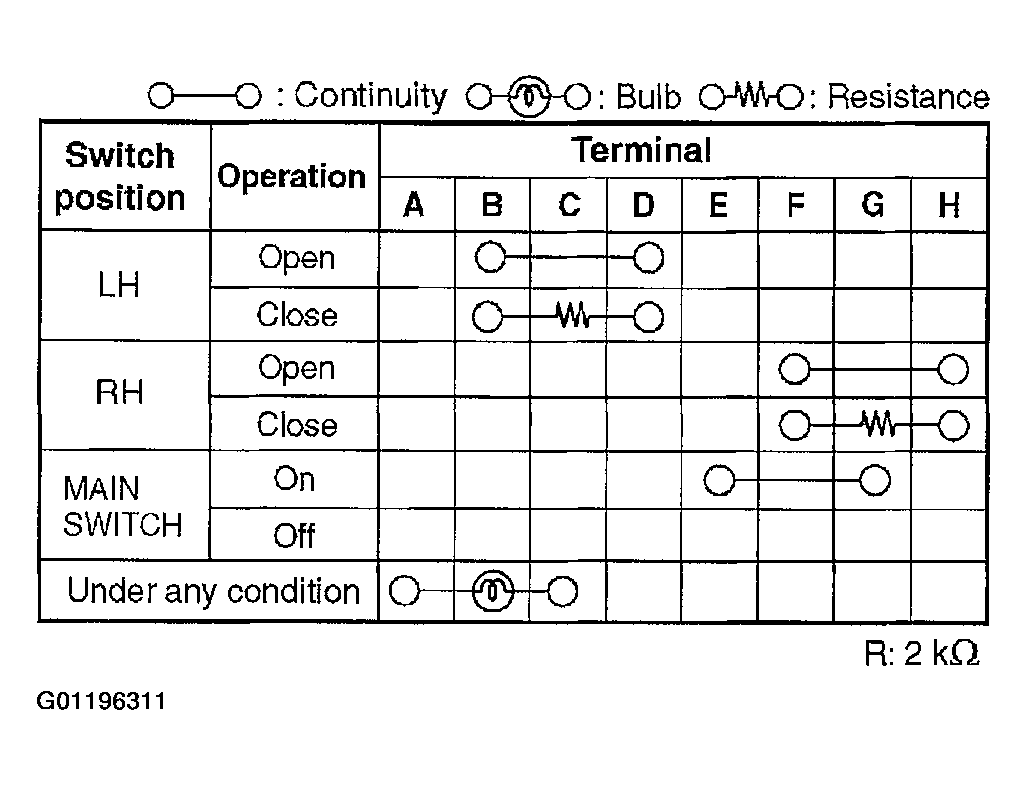

Fig 1: Inspecting Power Sliding Door (PSD) Front Switch Continuity
G01196311Courtesy of MAZDA MOTORS CORP.
Fig 2: Identifying Power Sliding Door (PSD) Front Switch Connector
G01196312Courtesy of MAZDA MOTORS CORP.
