Front Door Adjustment
WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Measure the gap and height between the front door and the body.
- If not as specified, loosen the door hinge installation bolts or the door lock striker installation screws, and reposition the door. See FRONT DOOR REMOVAL/INSTALLATION . See DOOR LOCK STRIKER REMOVAL/INSTALLATION .

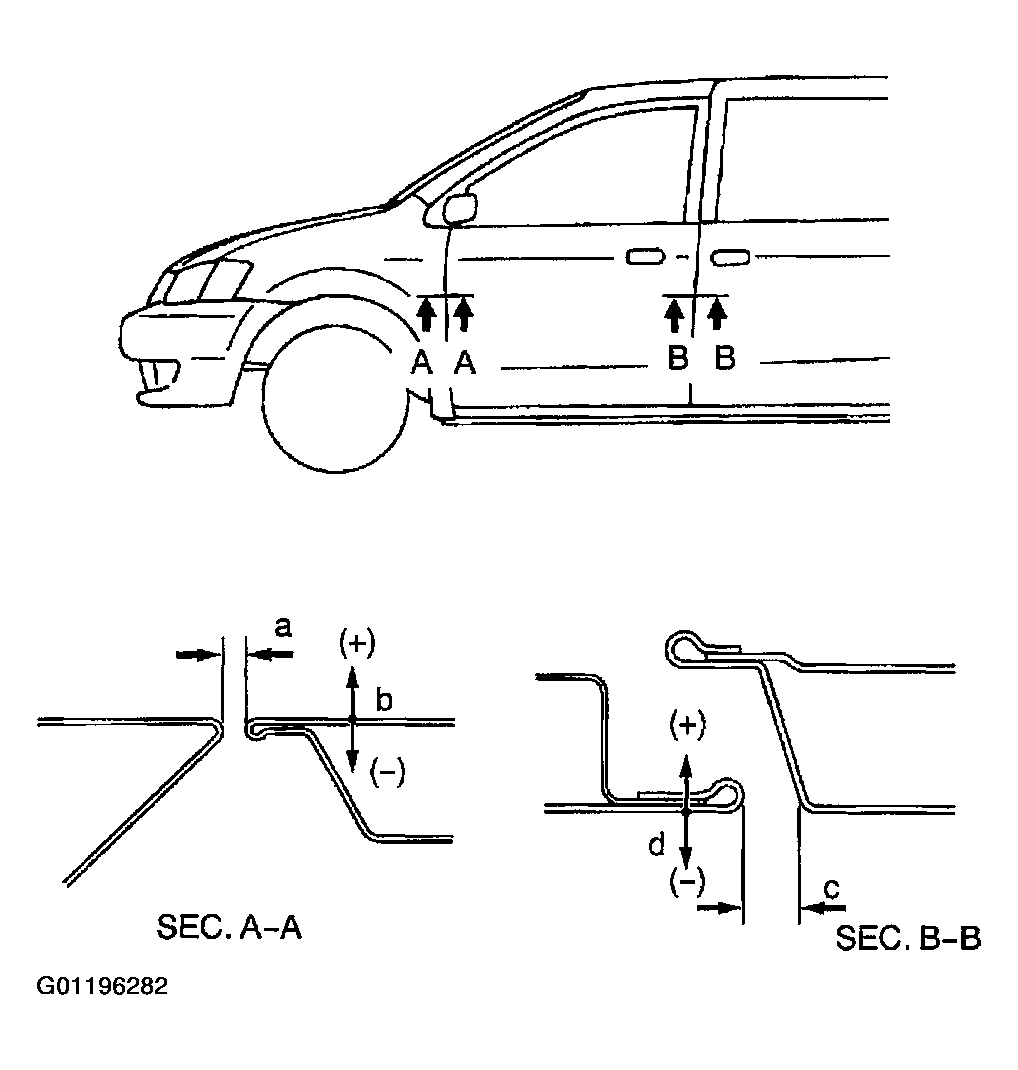

Clearance
- a: 4.0-6.0 mm {0.16-0.23 in}
- b: -1.0-1.0 mm {-0.03-0.03 in}
- c: 3.5-6.5 mm {0.14-0.25 in}
- d: -1.5-1.5 mm {-0.05-0.05 in}
- Tighten the bolts or screws.
