Vanity Mirror Illumination Bulb Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the sunvisor.
Insert a tape-wrapped flathead screwdriver into the service hole.
Twist the flathead screwdriver to remove the lens.

Fig 1: Removing Vanity Mirror
Courtesy of MAZDA MOTORS CORP.
Pry the tabs slightly using a tape-wrapped flathead screwdriver.
Remove the mirror unit.

Fig 2: Remove Mirror Unit
Courtesy of MAZDA MOTORS CORP.
Remove the vanity mirror illumination bulbs.
Install in the reverse order of removal.

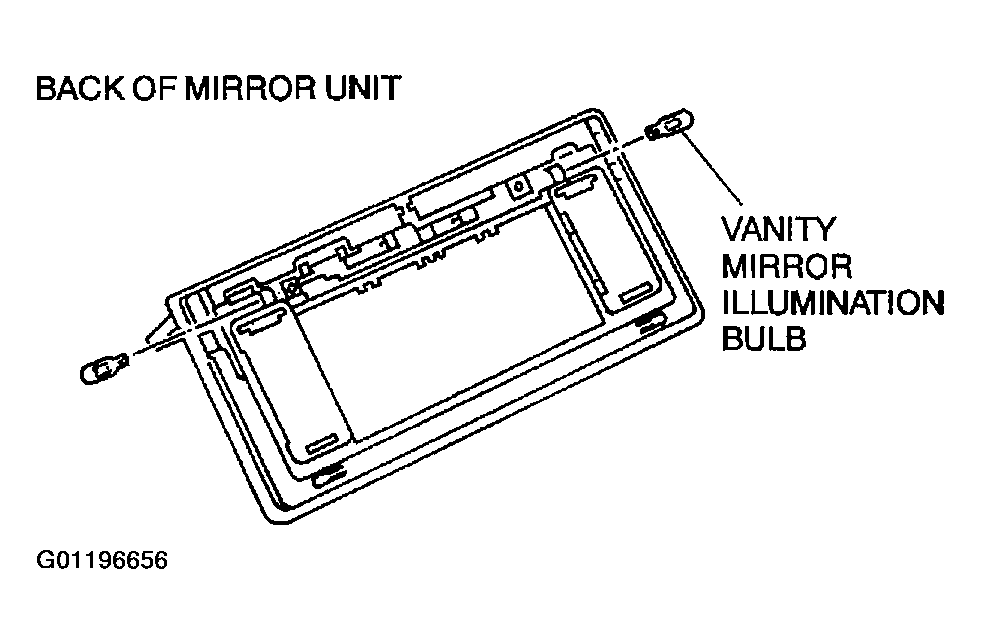

Fig 3: Removing Vanity Mirror Illumination Bulb

Courtesy of MAZDA MOTORS CORP.
