Intermediate Shaft: Installation

WARNING: This page is about a different car, the 2001 Mazda Tribute, 2001 Mazda Protege, 2001 Mazda Millenia, 2001 Mazda MPV, and 2001 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Tighten bearing bracket mounting bolts in sequence and to specification. See Fig 4 , Fig 5 , orFig 6 . See TORQUE SPECIFICATIONS  . On Millenia, tighten bearing bracket mounting bolt "A" last. See Fig 4 .

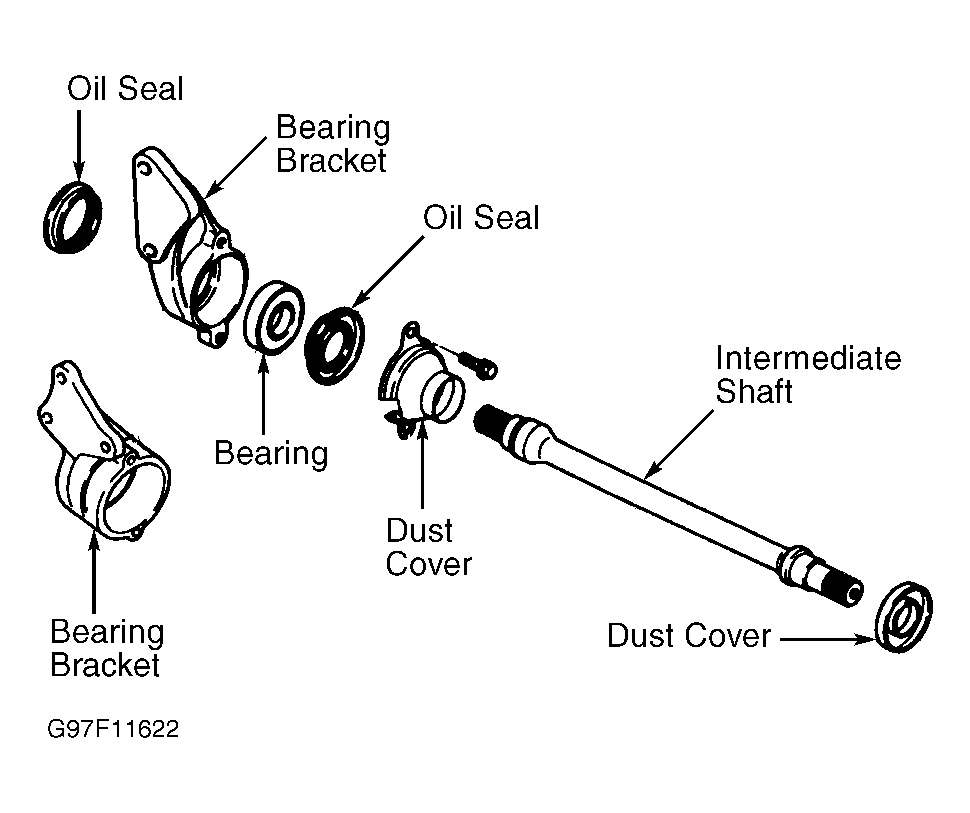

Fig 1: Exploded View Of Intermediate Shaft (Millenia)
G97F11622Courtesy of MAZDA MOTORS CORP.
Fig 2: Exploded View Of Intermediate Shaft (Protege)
G97E11621Courtesy of MAZDA MOTORS CORP.

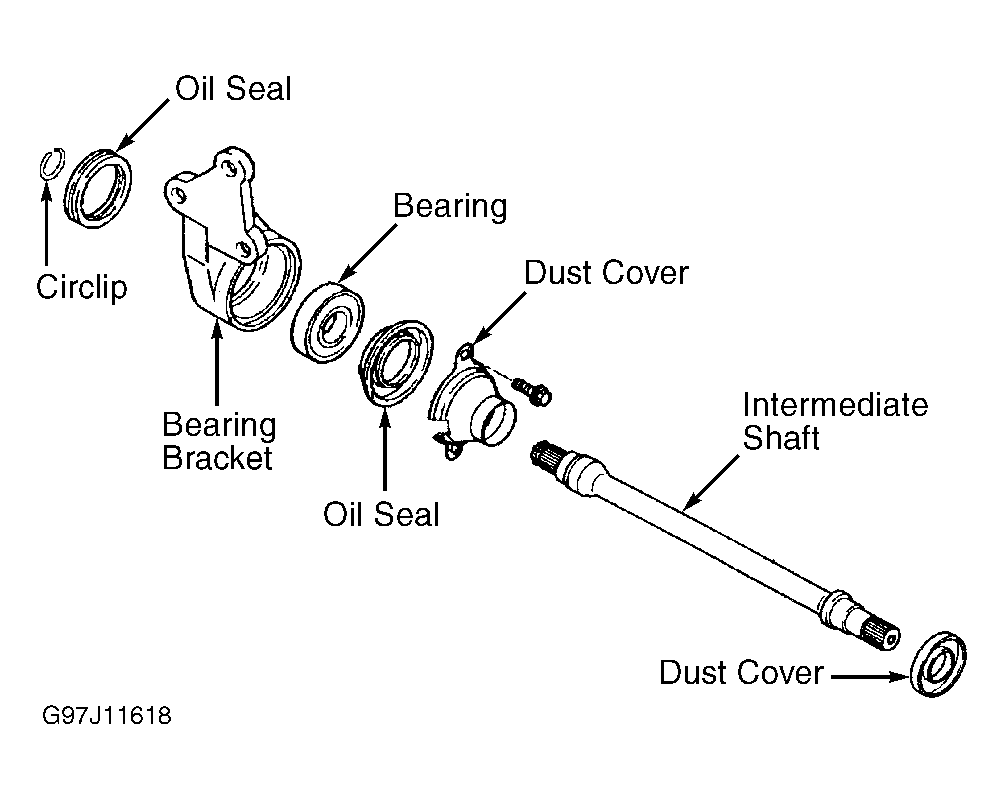

Fig 3: Exploded View Of Intermediate Shaft (626)
G97J11618Courtesy of MAZDA MOTORS CORP.
Fig 4: Bearing Bracket Mounting Bolts Tightening Sequence (Millenia)
G97E11613Courtesy of MAZDA MOTORS CORP.
Fig 5: Bearing Bracket Mounting Bolts Tightening Sequence (Protege)
G97F11614Courtesy of MAZDA MOTORS CORP.

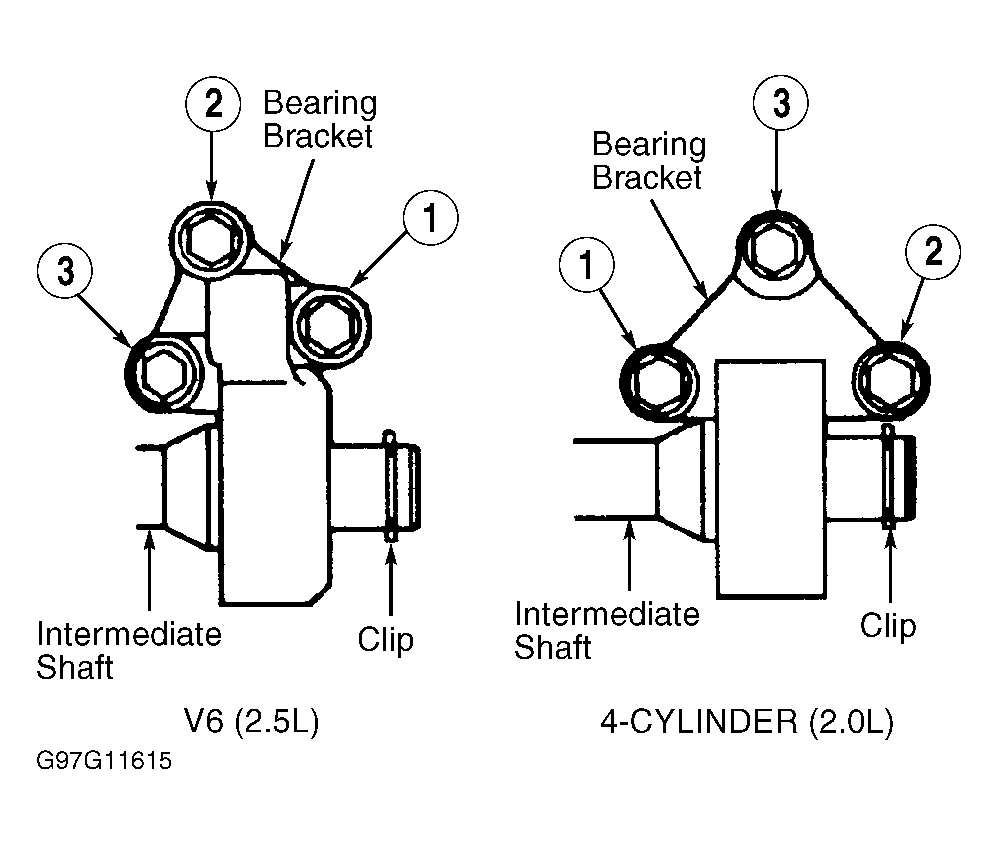

Fig 6: Bearing Bracket Mounting Bolts Tightening Sequence (626)
G97G11615Courtesy of MAZDA MOTORS CORP.
