Removal & Installation
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

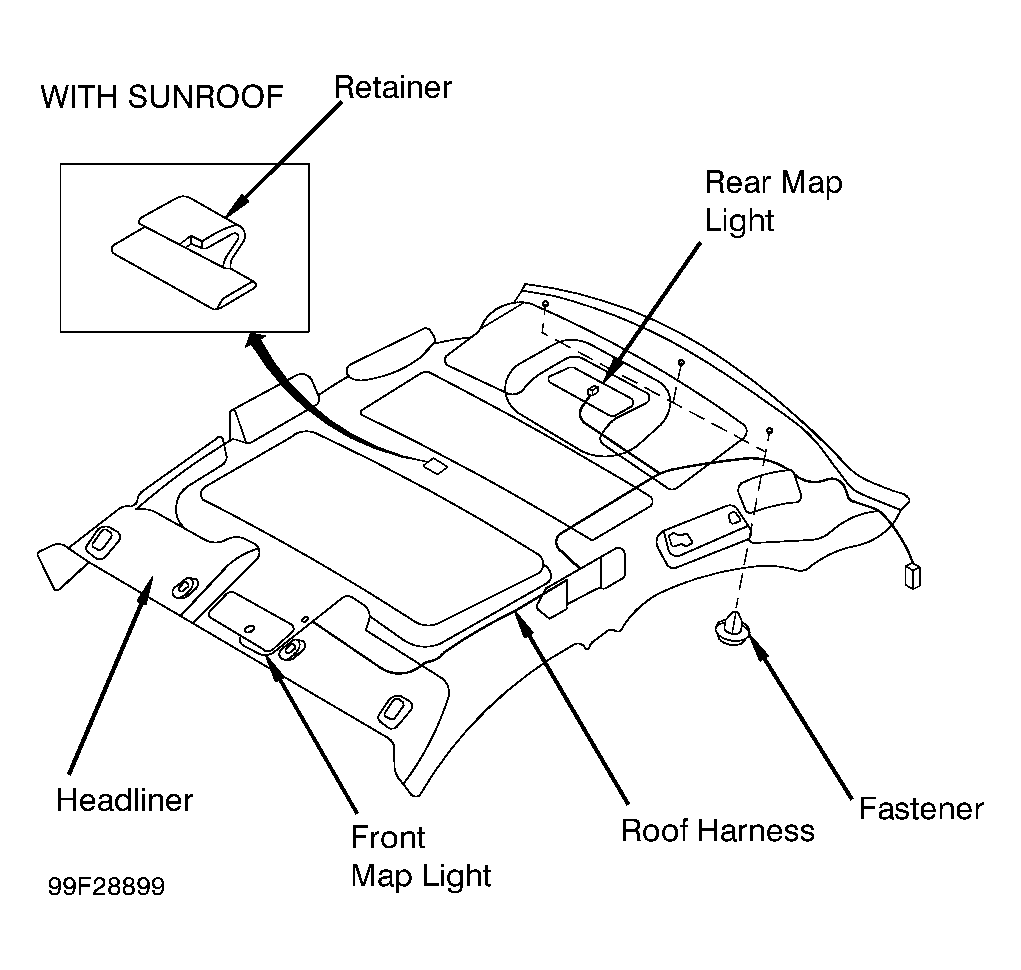

- Disconnect and isolate negative battery cable. Remove sunroof interior moulding, if equipped. Remove right and left A-, B- and C-pillar trim panels. Remove front and rear map lights. See Fig 1 . Disconnect rearview mirror connector, if equipped with auto-dimming. Remove sun visors. Remove assist handles.
- Disconnect roof harness connector, remove clip and remove connector. Remove headliner fasteners and retainer. Remove headliner through passenger-side door opening. To install, reverse removal procedure.
