Upper Arm Installation - 4x4

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2004 Mazda B4000, 2004 Mazda B3000, 2004 Mazda B2300, 2003 Mazda B4000, and 2003 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Install the front suspension upper arm.
1. Position the front suspension arm bushing joint.
2. Install the two bolts, four cams and two nuts.
NOTE: When installing the front suspension upper arm, replace the alignment plates with new alignment cams.

Fig 1: Installing Front Suspension Upper Arm
Courtesy of MAZDA MOTORS CORP.
Install the pinch bolt and nut.
1. Position the upper arm into the front wheel knuckle.
2. Install the pinch bolt and nut.

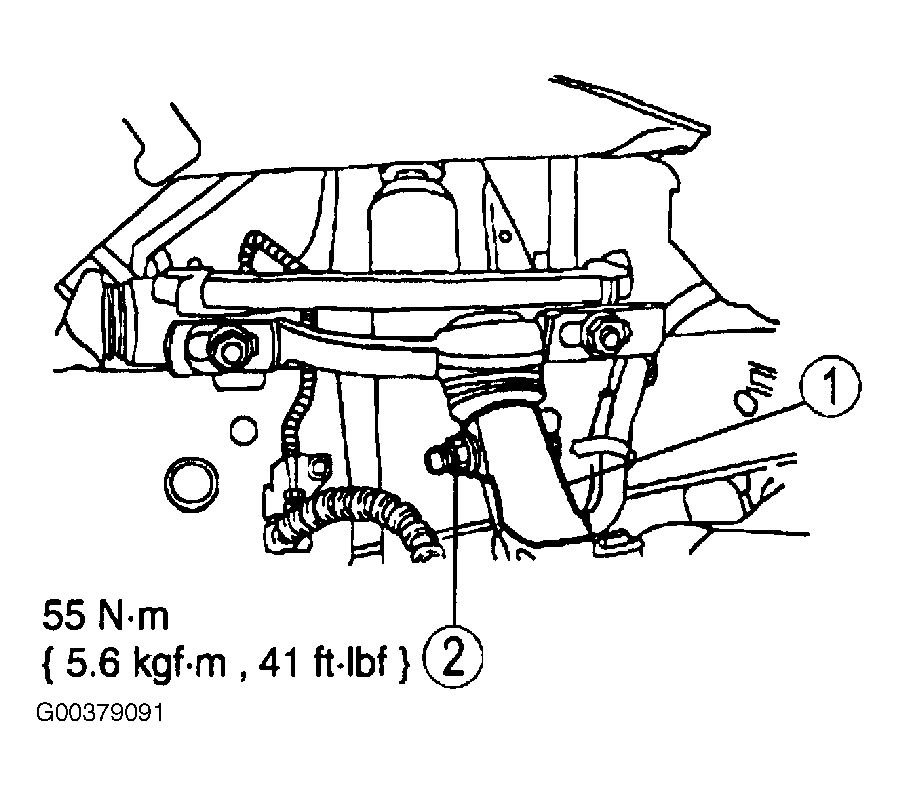

Fig 2: Installing Pinch Bolt
Courtesy of MAZDA MOTORS CORP.
Remove the jack stand from under the front suspension lower arm.
Install the wheel and tire assembly.
Lower the vehicle.
Check the alignment. See WHEEL ALIGNMENT SPECIFICATIONS .
