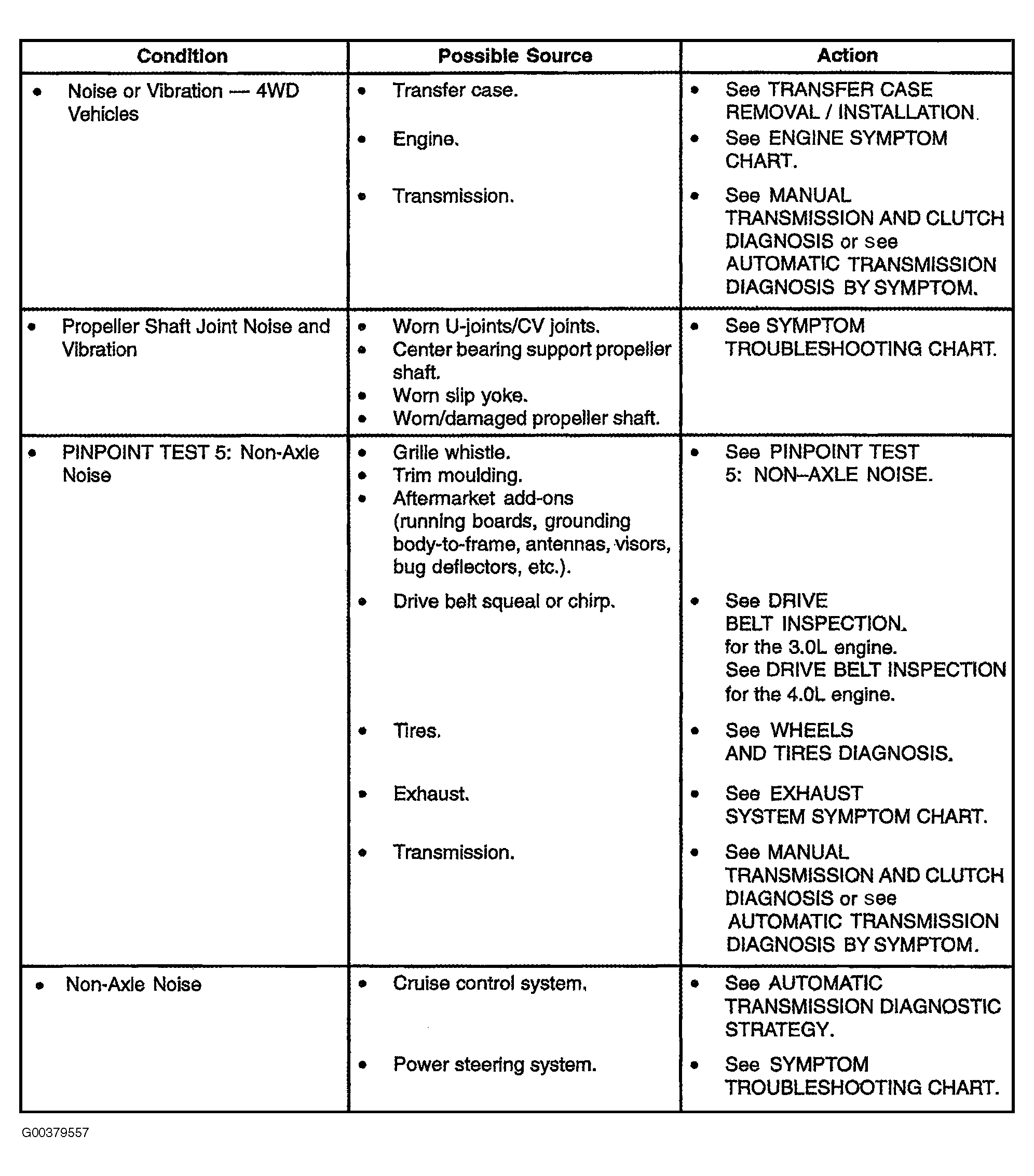

Symptom Troubleshooting Chart - Suspension NVH
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2004 Mazda B4000, 2004 Mazda B3000, 2004 Mazda B2300, 2003 Mazda B4000, and 2003 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
The following diagnostic tests are designed to take the technician through a step-by-step diagnosis procedure to determine the cause of a condition. It may not always be necessary to follow a chart to its conclusion. Perform only the steps necessary to correct the condition. Then check the operation of the system to make sure the condition has been corrected. It is sometimes necessary to remove various vehicle components to gain access to the component to be tested. See the applicable section for removal and installation of components. After verifying that the condition has been corrected, make sure all components removed have been installed.
