Suspension Pinpoint Test 1: High-Speed Shake

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2004 Mazda B4000, 2004 Mazda B3000, 2004 Mazda B2300, 2003 Mazda B4000, and 2003 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

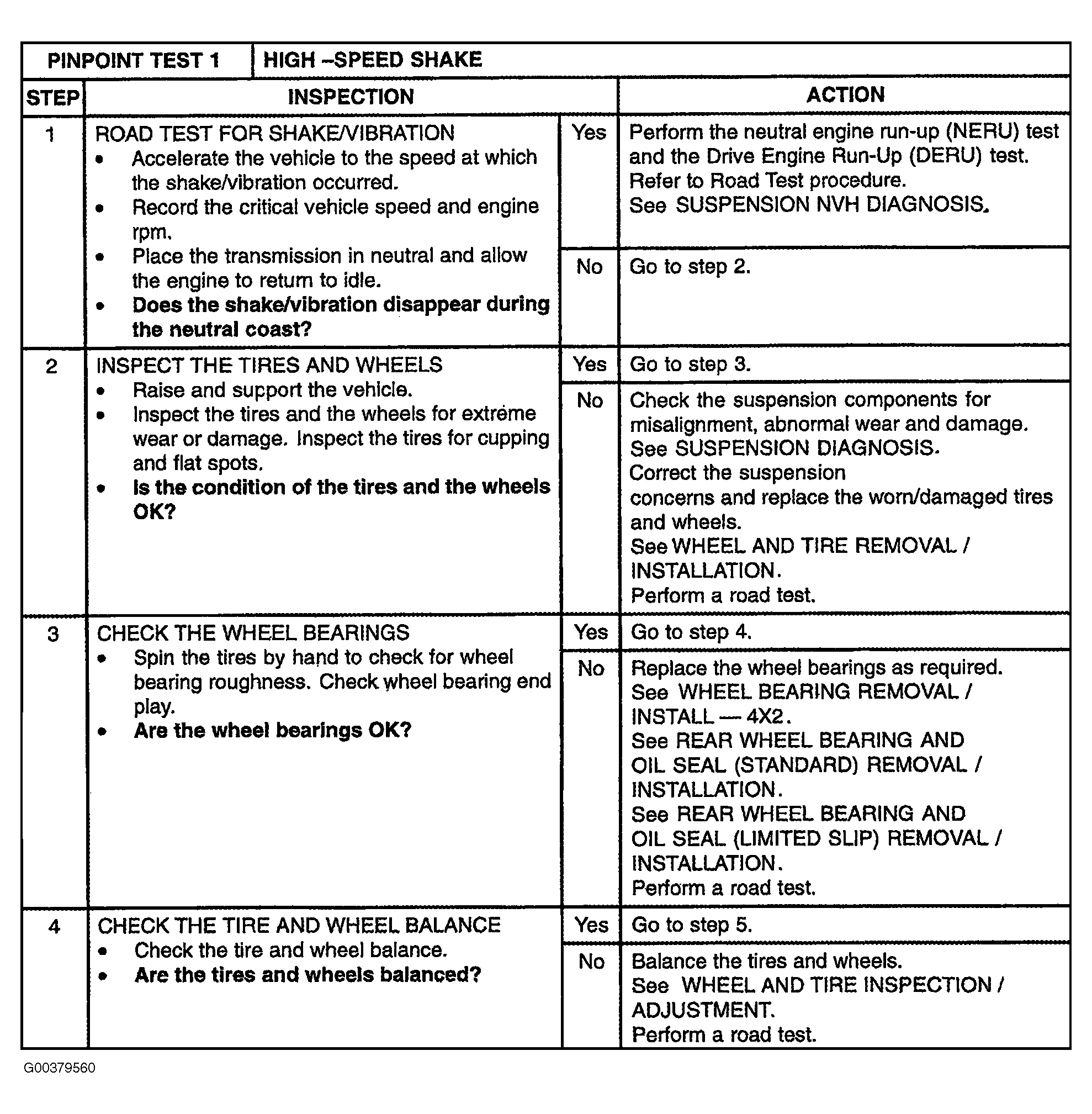

Fig 1: Pinpoint Test 1: High Speed Shake (Steps 1- 4)

Courtesy of MAZDA MOTORS CORP.

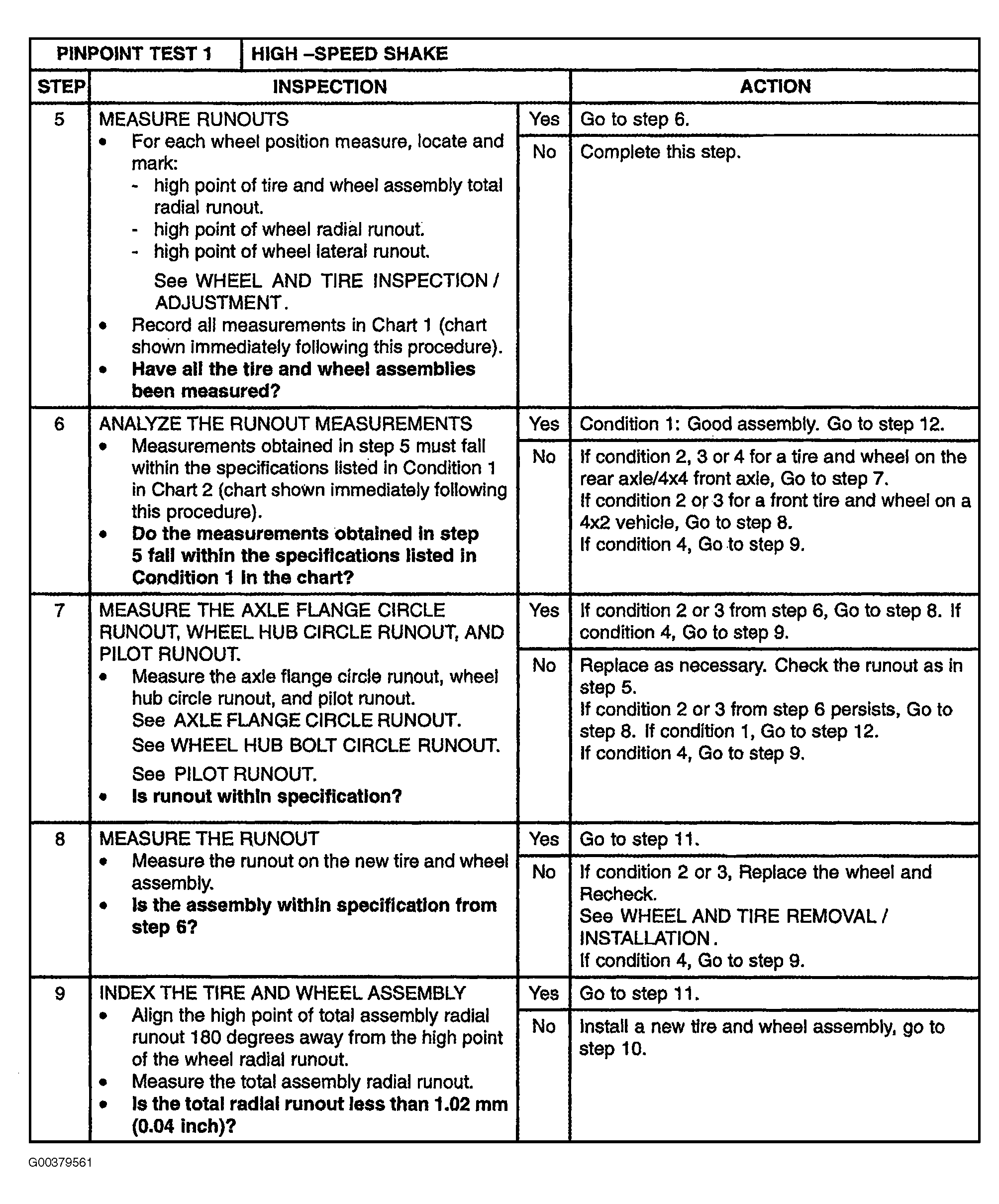

Fig 2: Pinpoint Test 1: High Speed Shake (Steps 5-9)

Courtesy of MAZDA MOTORS CORP.

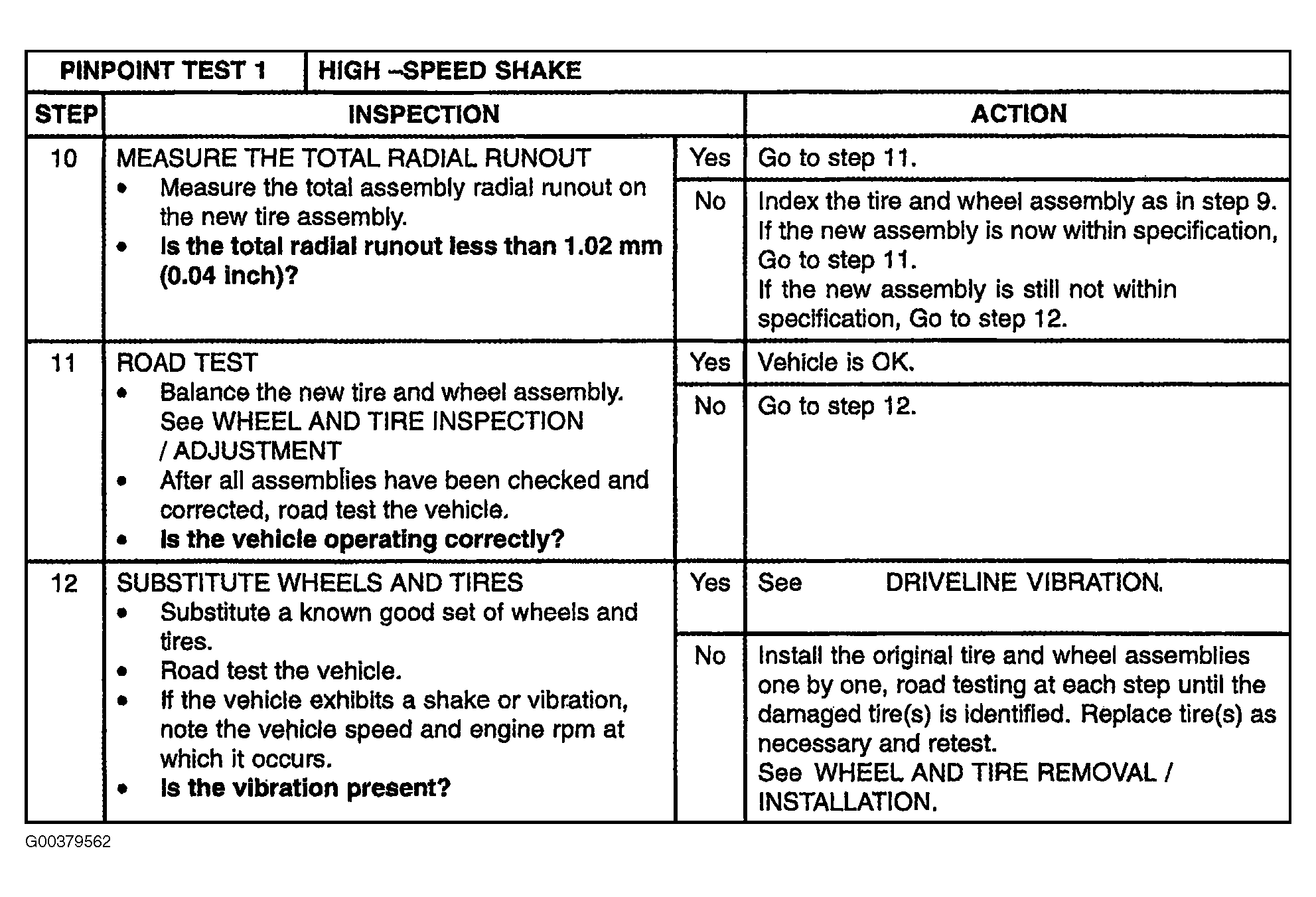

Fig 3: Pinpoint Test 1: High Speed Shake (Steps 10-12)

Courtesy of MAZDA MOTORS CORP.

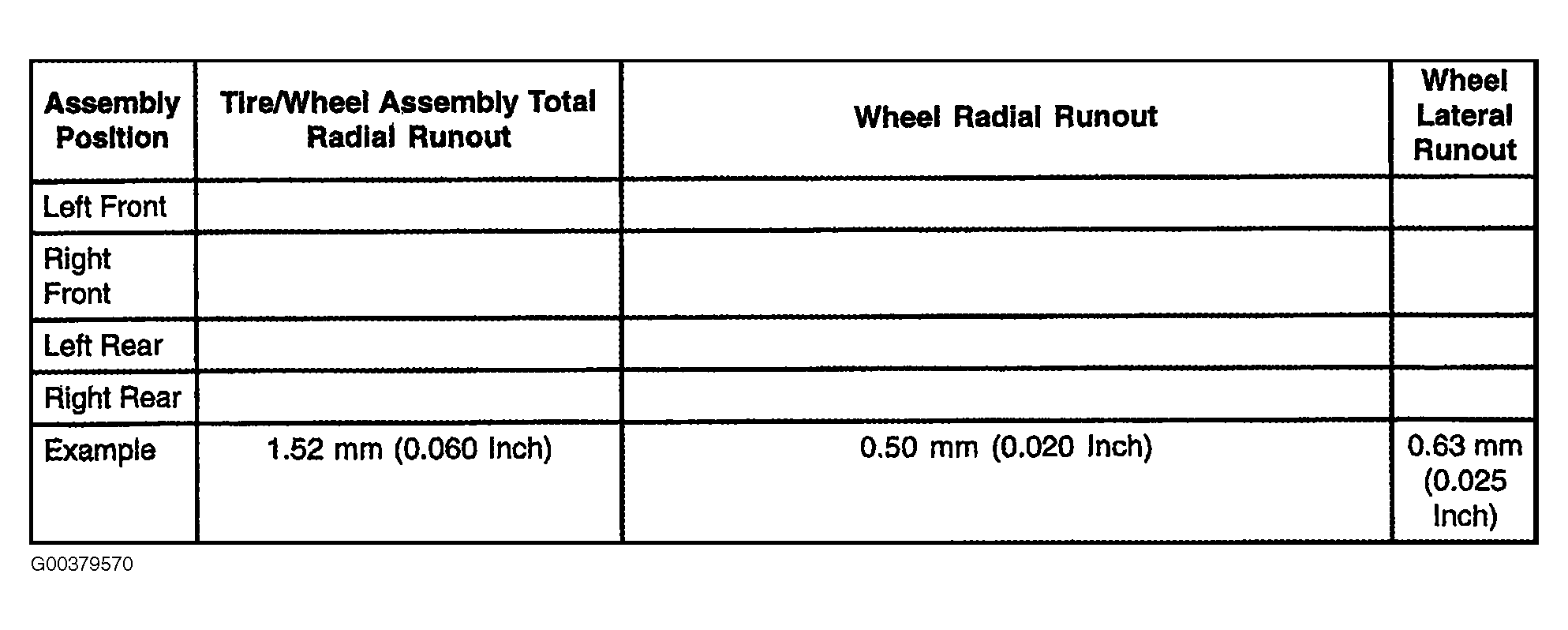

Fig 4: Chart 1 (Wheel/Tire Runout Specifications)

Courtesy of MAZDA MOTORS CORP.

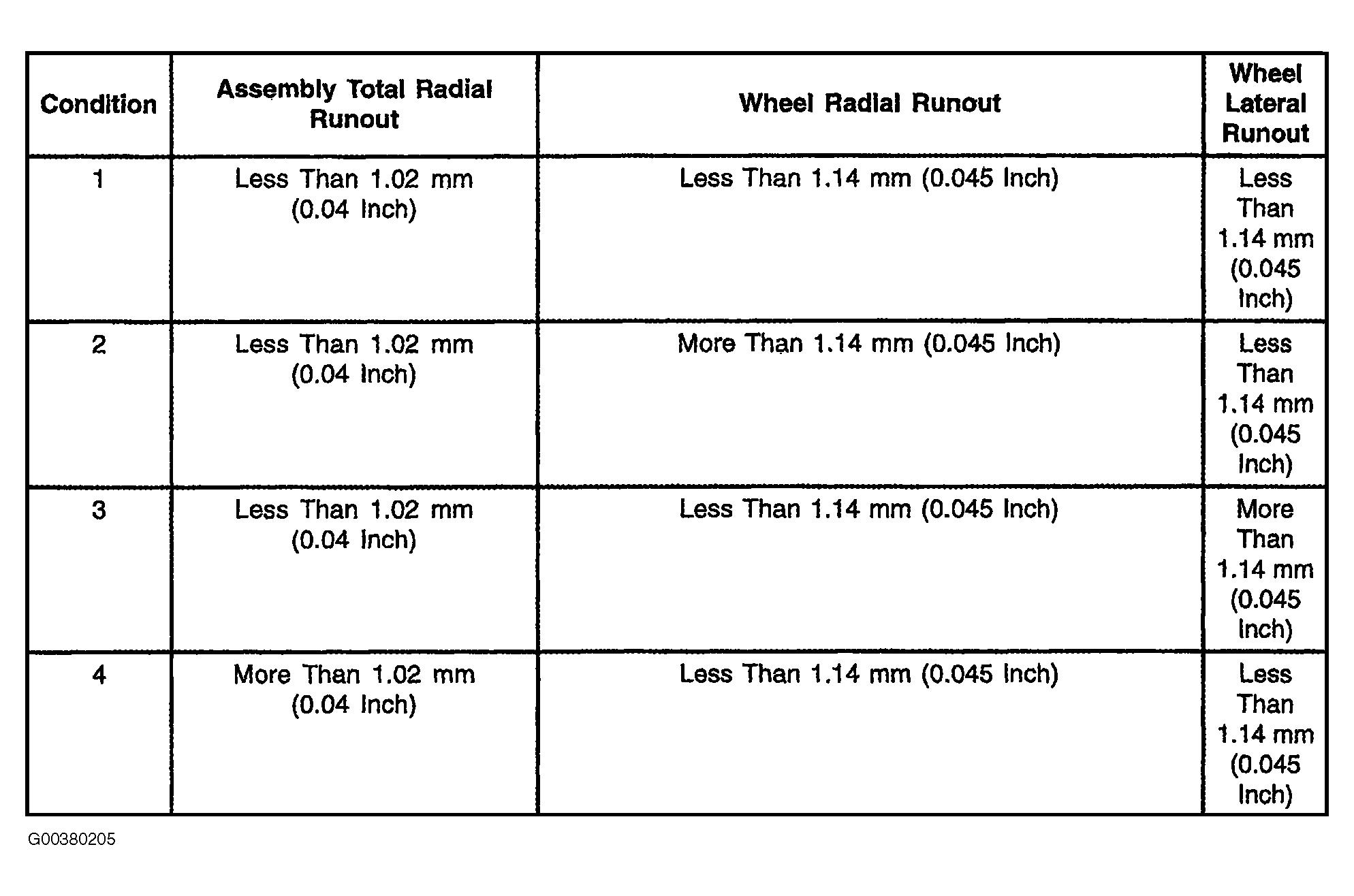

Fig 5: Chart 2 (Wheel/Tire Runout Specifications)

Courtesy of MAZDA MOTORS CORP.
