Bar And Link Removal - 4X2

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2004 Mazda B4000, 2004 Mazda B3000, 2004 Mazda B2300, 2003 Mazda B4000, and 2003 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist.
  2. Remove the wheel and tire assembly.
  3. Remove the front stabilizer bar link nuts from the front suspension lower arms.

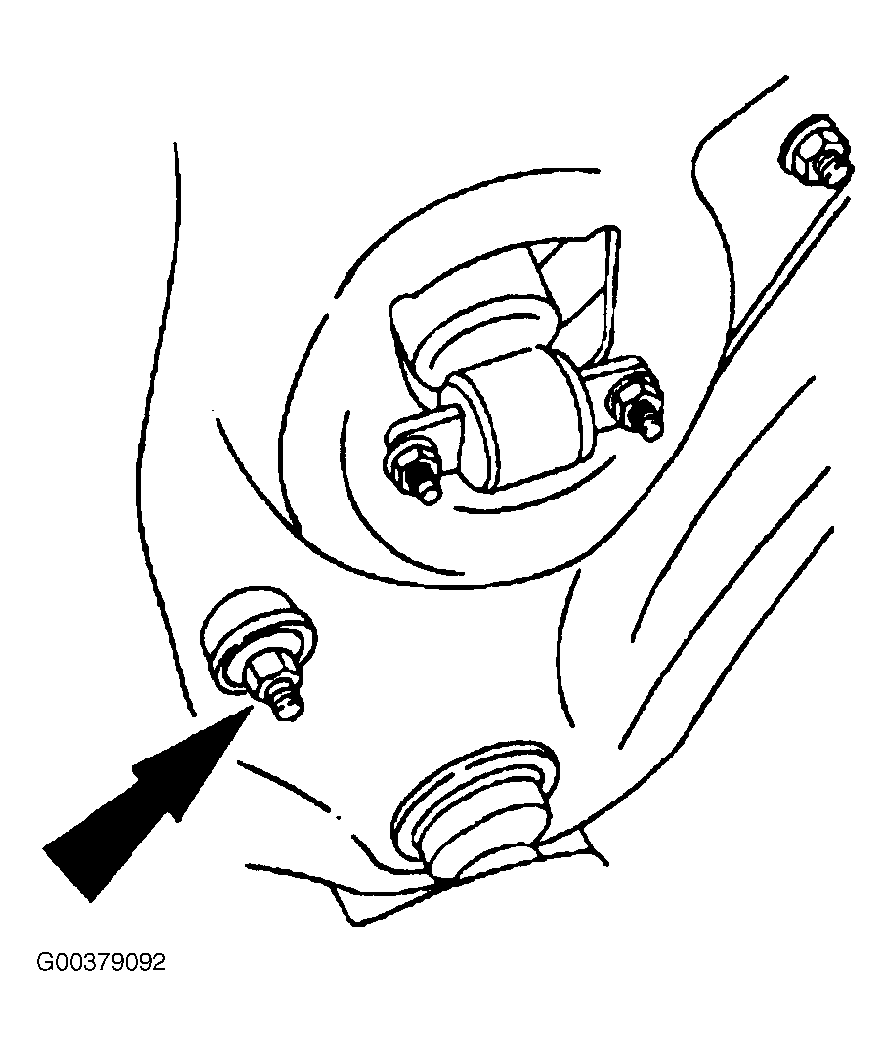

    Fig 1: Removing Front Stabilizer Bar Link Nuts
    G00379092Courtesy of MAZDA MOTORS CORP.
  4. Remove the front stabilizer bar link bolts (1) and the front stabilizer bar links (2).

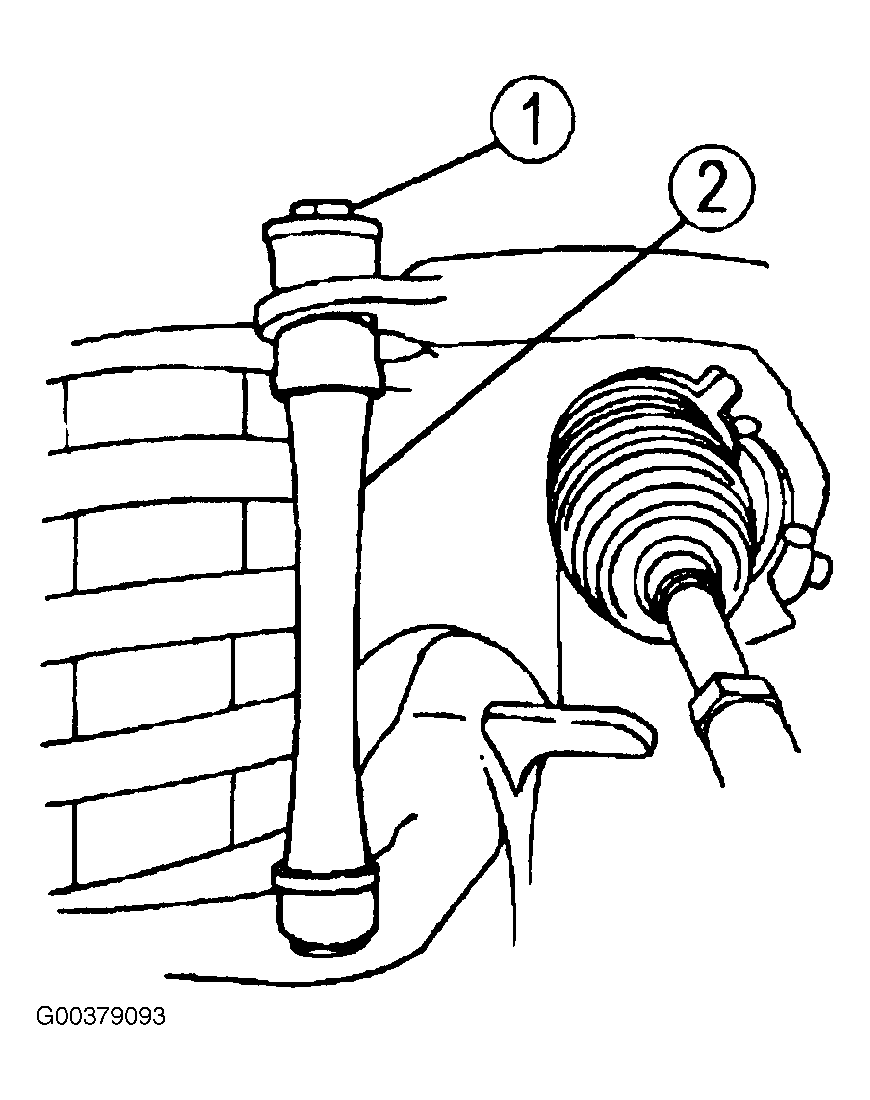

    Fig 2: Removing Front Stabilizer Bar Link Bolts
    G00379093Courtesy of MAZDA MOTORS CORP.
  5. Remove the front stabilizer bar.
    1. Remove the four bolts and two brackets.
    2. Remove the front stabilizer bar.
    3. Remove the stabilizer bar insulator.
