Rear Trailing Link (Lower) Removal Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Be sure that the rear axle component is firmly supported by the jack. If not securely supported, the rear axle component could fall, resulting in serious injury or death, and damage to the vehicle.
  1. Support the rear knuckle using a jack.

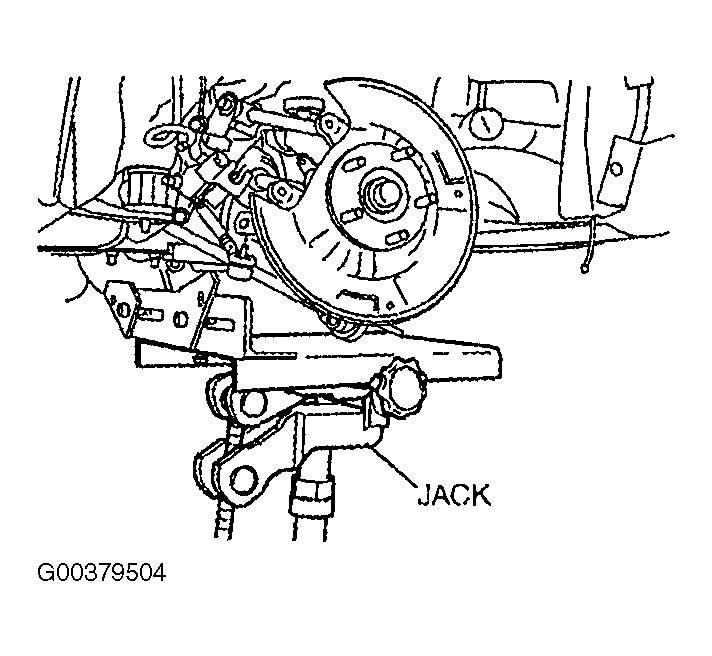

    Fig 1: Supporting Rear Axle
    G00379504Courtesy of MAZDA MOTORS CORP.
  2. Remove the rear trailing link (lower) outer bolt.
  3. Remove the rear trailing link (lower) inner bolt.
