Rear Lateral Link (Lower) Ball Joint Removal Note
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When removing the rear lateral link (lower) ball joint, the rear knuckle bushing may also come off. If it comes off, replace the rear knuckle.

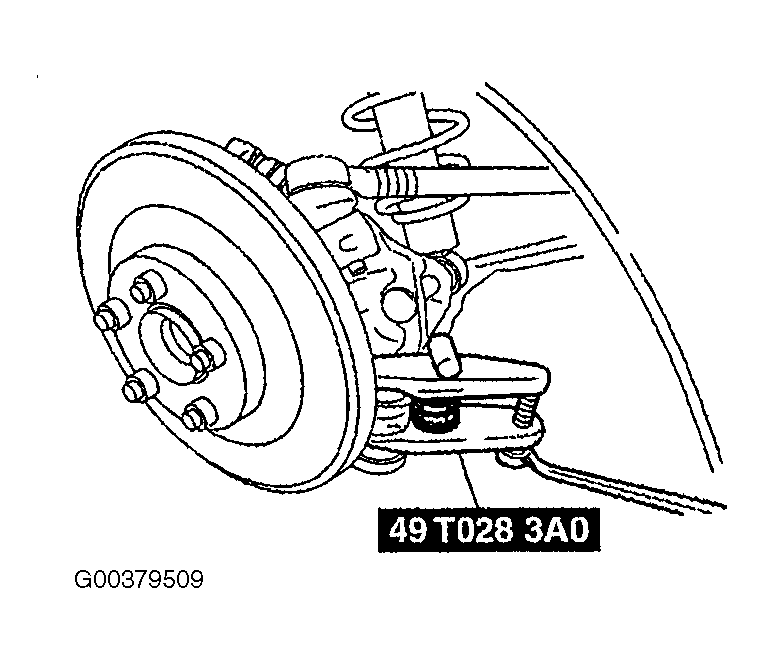

Using the SST , disconnect the ball joint.
Courtesy of MAZDA MOTORS CORP.
