No. 2 Bushing Installation Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

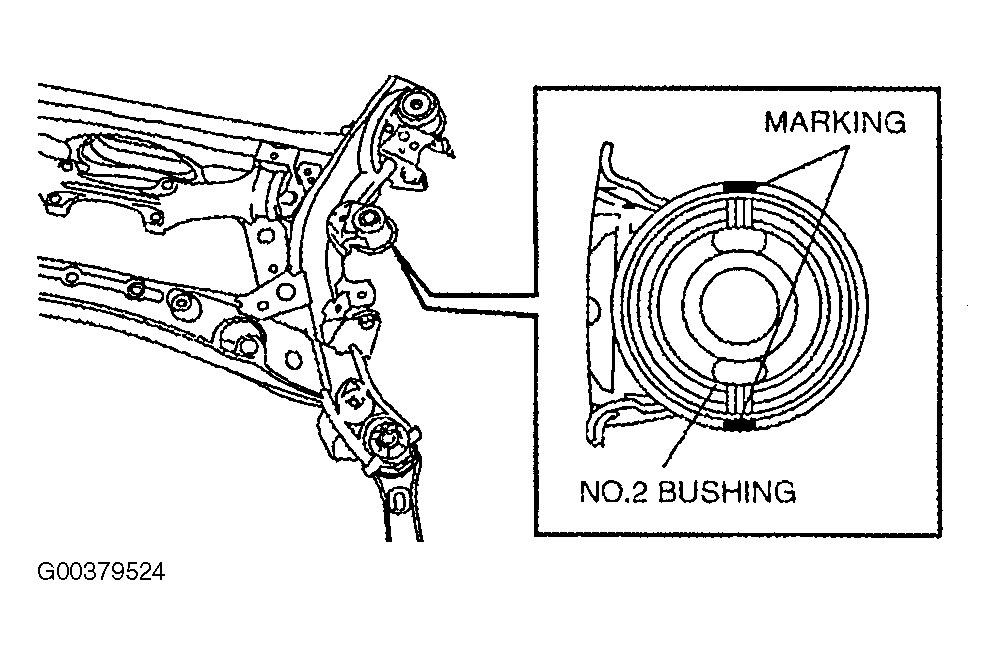

  1. Install the new bushing according to the marking made during bushing removal. See Figure.
  2. Press fit the bushing using the SST.
    Fig 1: Installing Rear Crossmember Bushing No. 2
    G00379528Courtesy of MAZDA MOTORS CORP.
