Remove the bolt and position the anti-lock brake sensor aside.

Fig 1: Removing Anti-Lock Brake Sensor Bolt
Courtesy of MAZDA MOTORS CORP.
Separate the lower ball joint from the wheel knuckle. Remove the pinch bolt. Separate the lower ball joint from the wheel knuckle.

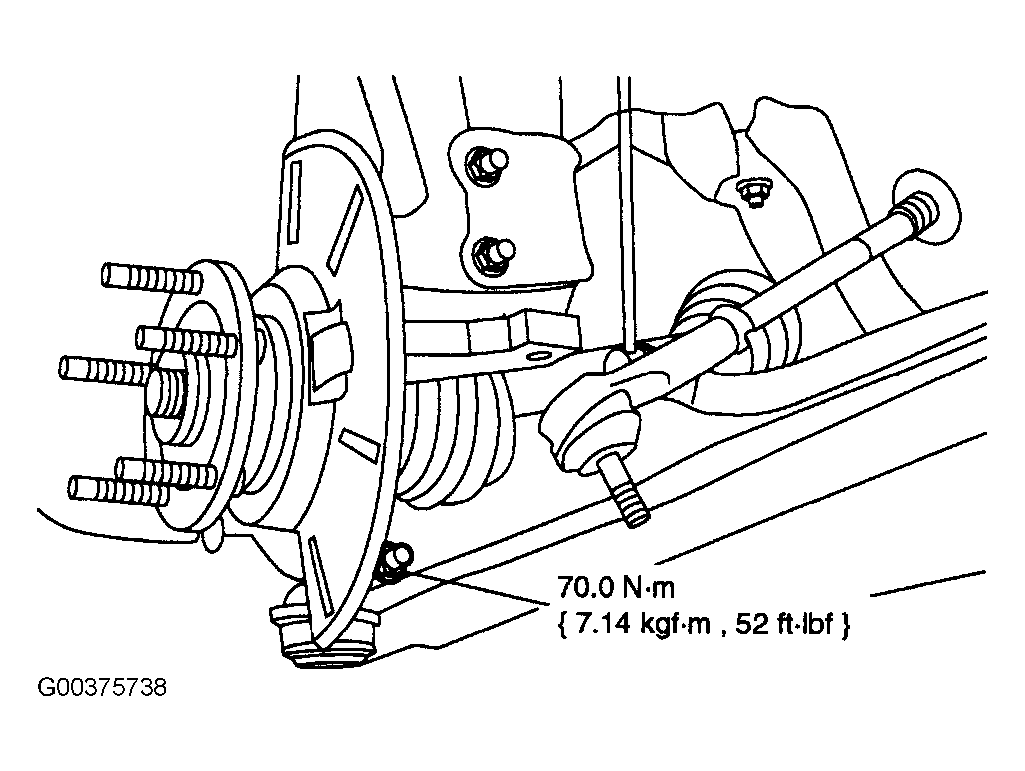

Fig 2: Separating Ball Joint From Knuckle
Courtesy of MAZDA MOTORS CORP.
Using the special tool, separate the halfshaft from the wheel knuckle. Position the halfshaft aside and support.

Fig 3: Separating Halfshaft From Knuckle
Courtesy of MAZDA MOTORS CORP.
Remove the wheel knuckle. Remove the strut-to-wheel knuckle bolts. Remove the wheel knuckle.

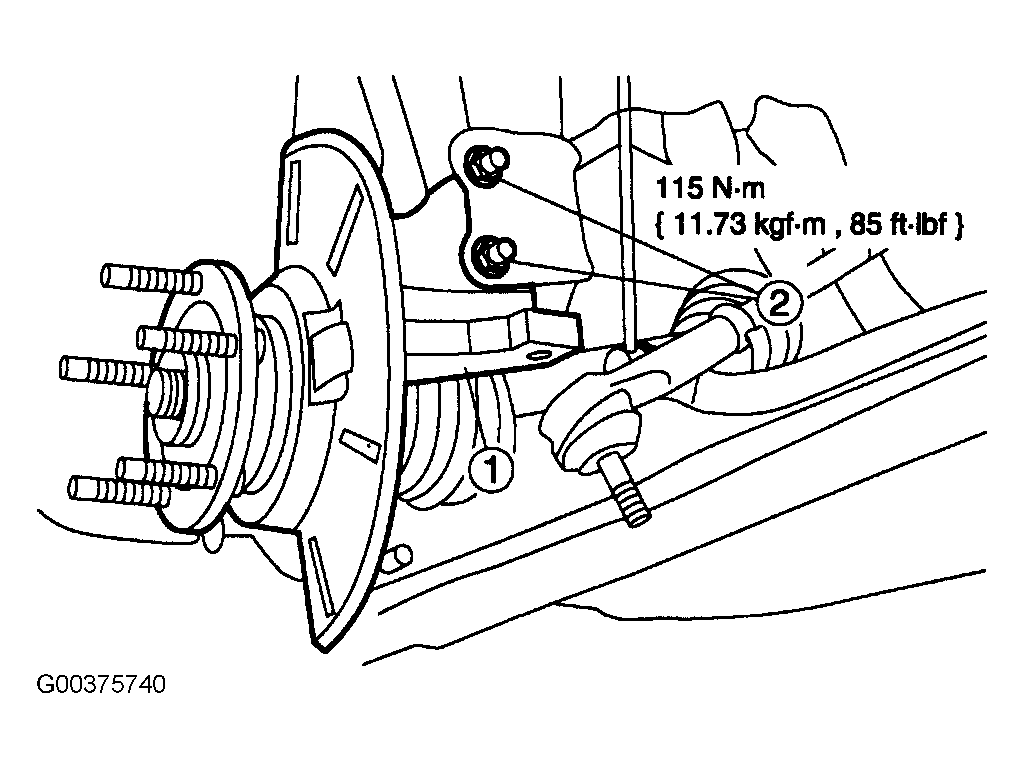

Fig 4: Removing Wheel Knuckle
Courtesy of MAZDA MOTORS CORP.
Using the special tool, press the wheel hub from the wheel bearing and knuckle.

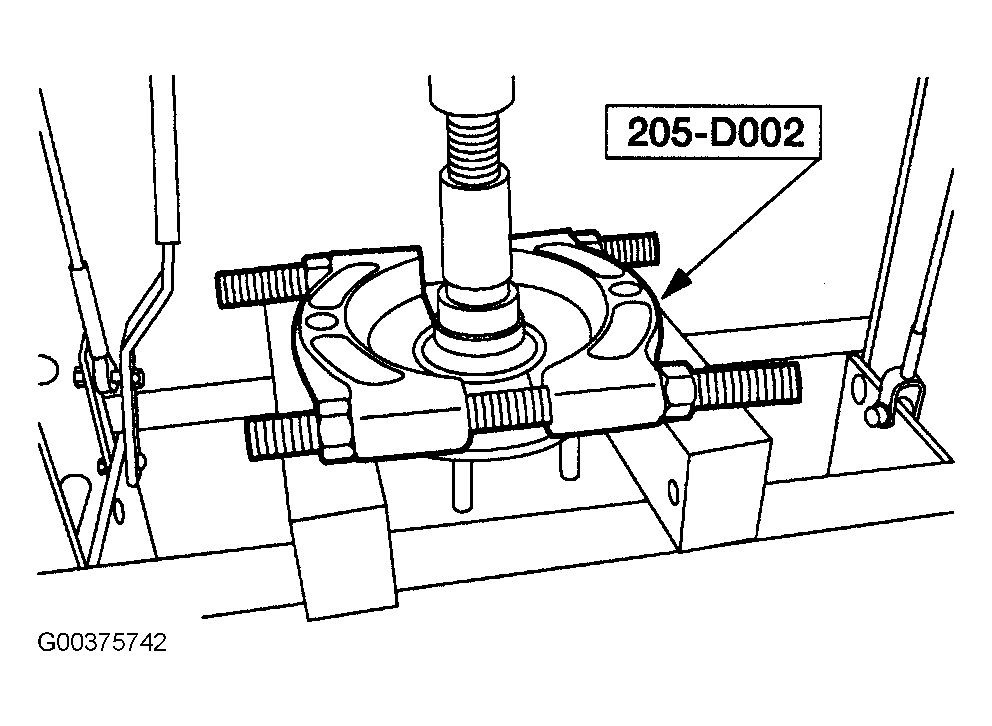

Fig 5: Pressing Wheel Hub From Wheel Bearing & Knuckle
Courtesy of MAZDA MOTORS CORP.

NOTE: This step may not be necessary if the inner wheel bearing race remains in the wheel knuckle, after removing the wheel hub.
Using the special tool, press the inner wheel bearing race from the wheel hub.

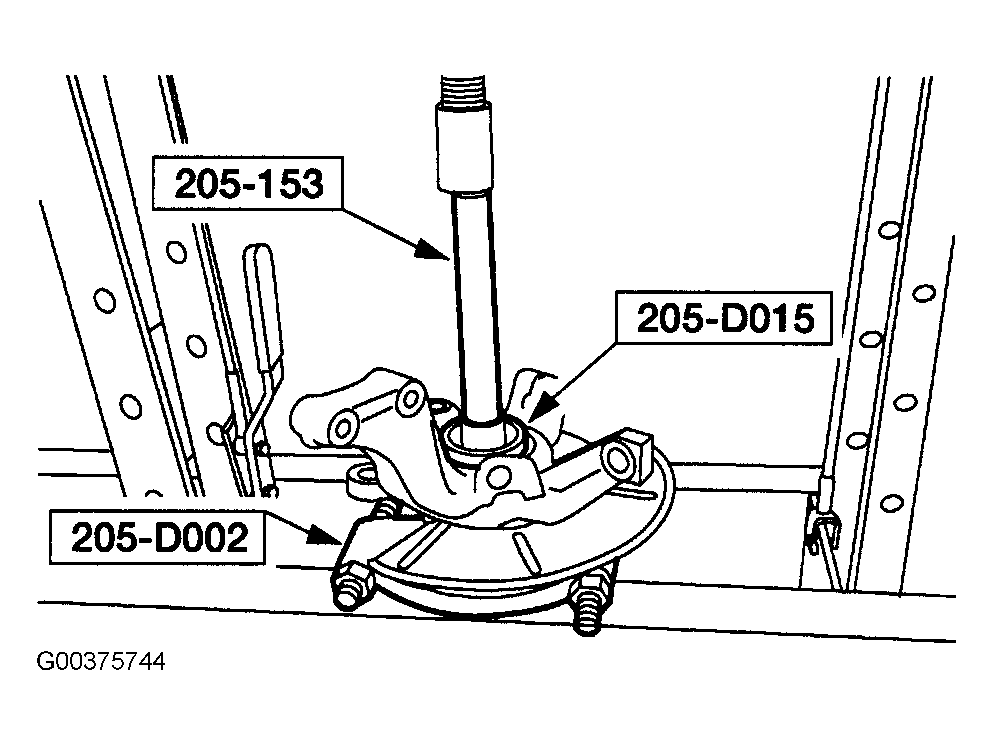

Fig 6: Removing Inner Wheel Bearing Race From Wheel Hub
Courtesy of MAZDA MOTORS CORP.
Remove the snap ring.

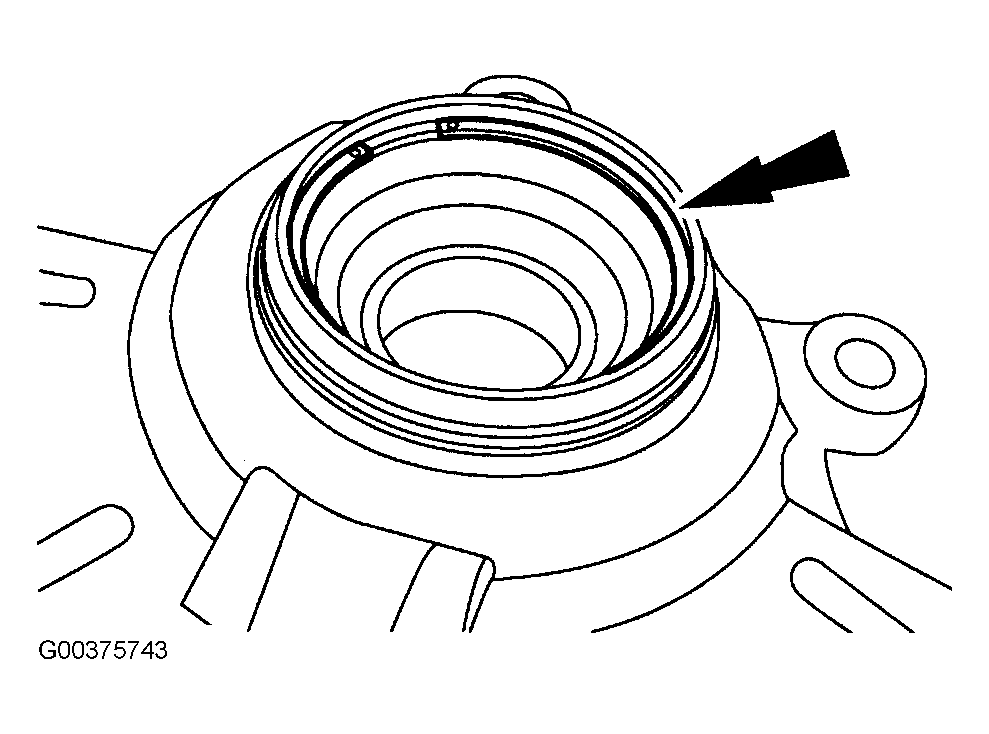

Fig 7: Removing Snap Ring
Courtesy of MAZDA MOTORS CORP.
Using the special tools, press the outer wheel bearing race from the wheel knuckle.

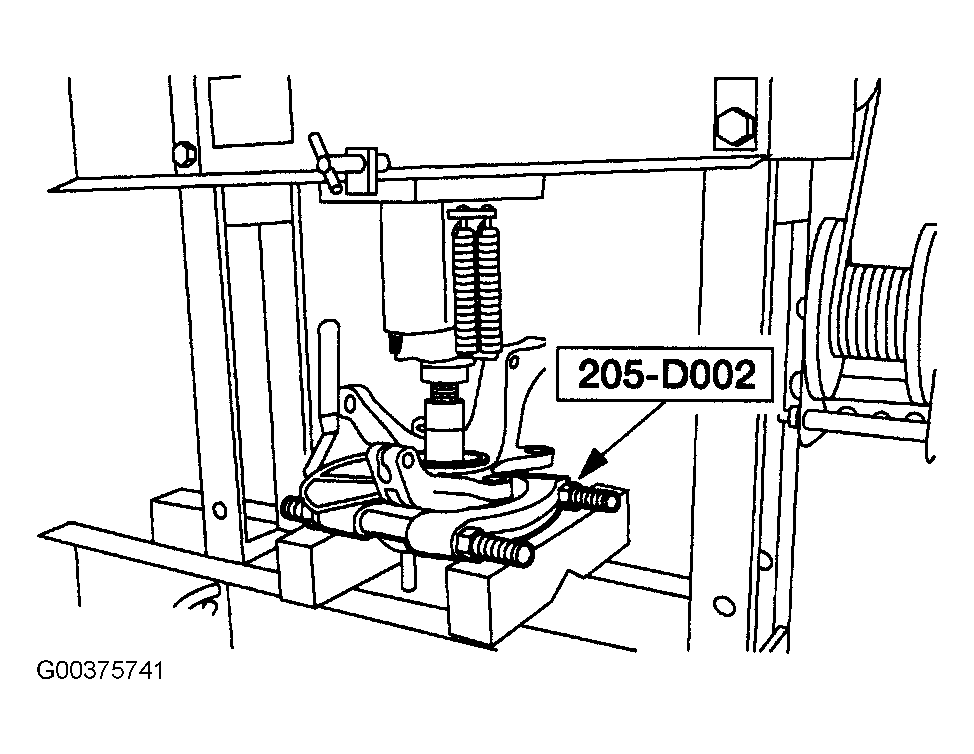

Fig 8: Removing Outer Wheel Bearing Race
Courtesy of MAZDA MOTORS CORP.

NOTE: The brake disc shield is pressed on.
If necessary, remove the brake disc shield.

Fig 9: Removing Brake Disc Shield
Courtesy of MAZDA MOTORS CORP.
