Vehicles with ABS

WARNING: This page is about a different car, the 2004 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

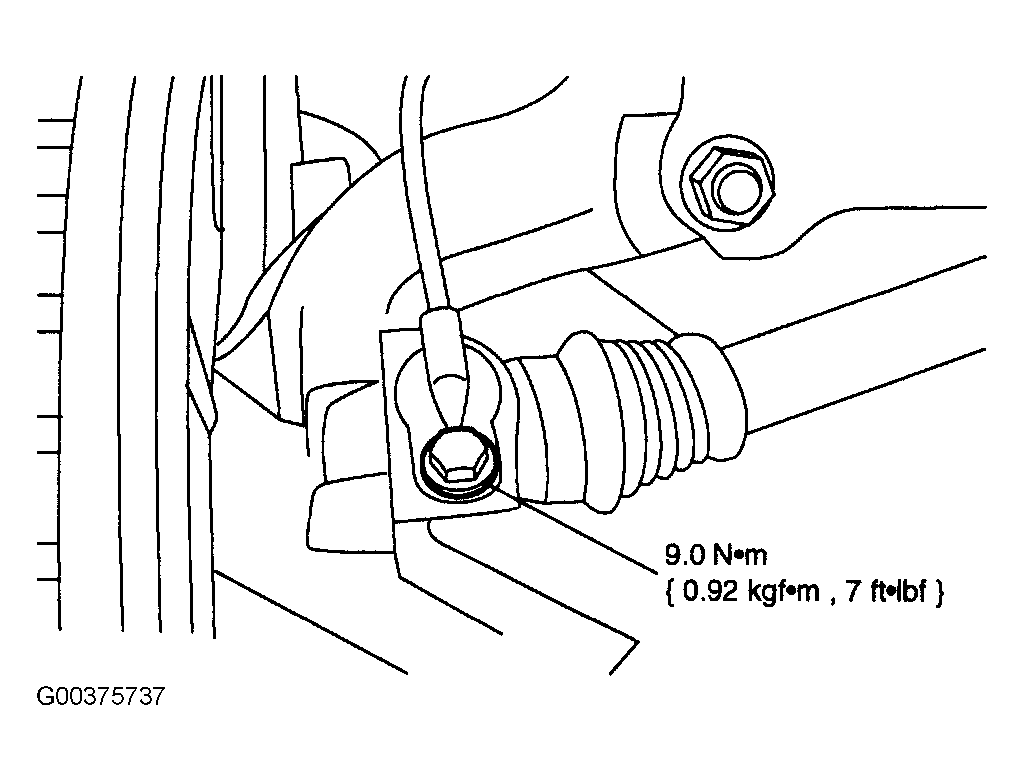

  1. Install the anti-lock brake sensor and tighten the bolt. See Figure .

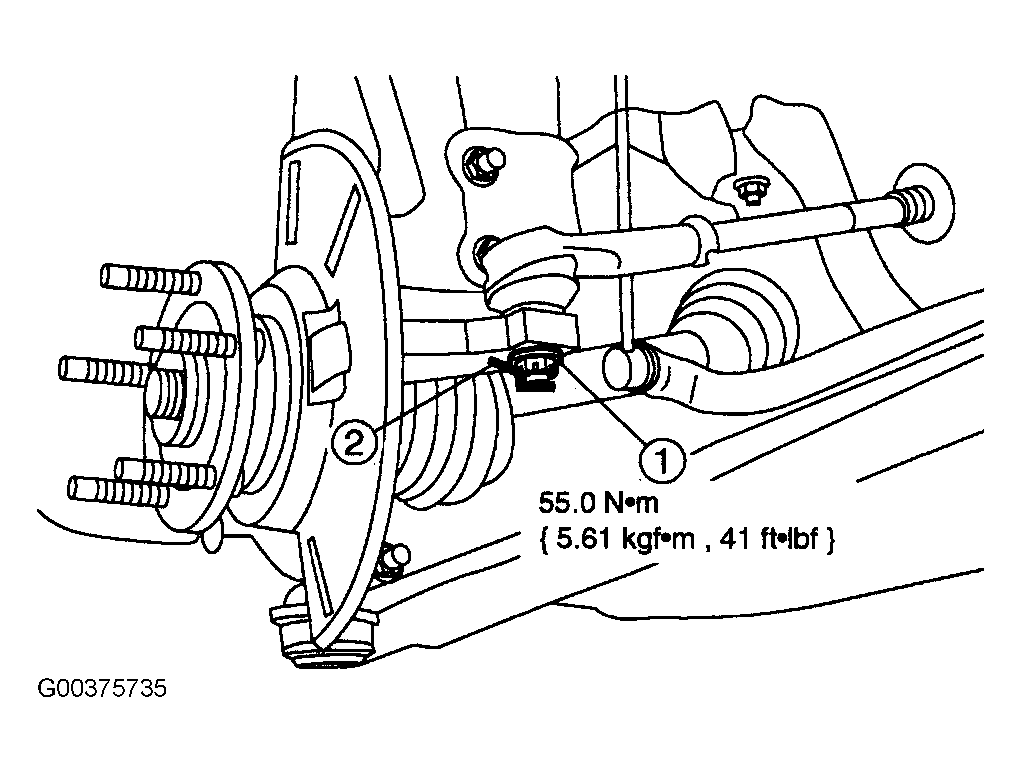

  2. Install the tie rod end into the wheel knuckle. See Figure . Install the tie rod end nut. Install a new cotter pin.

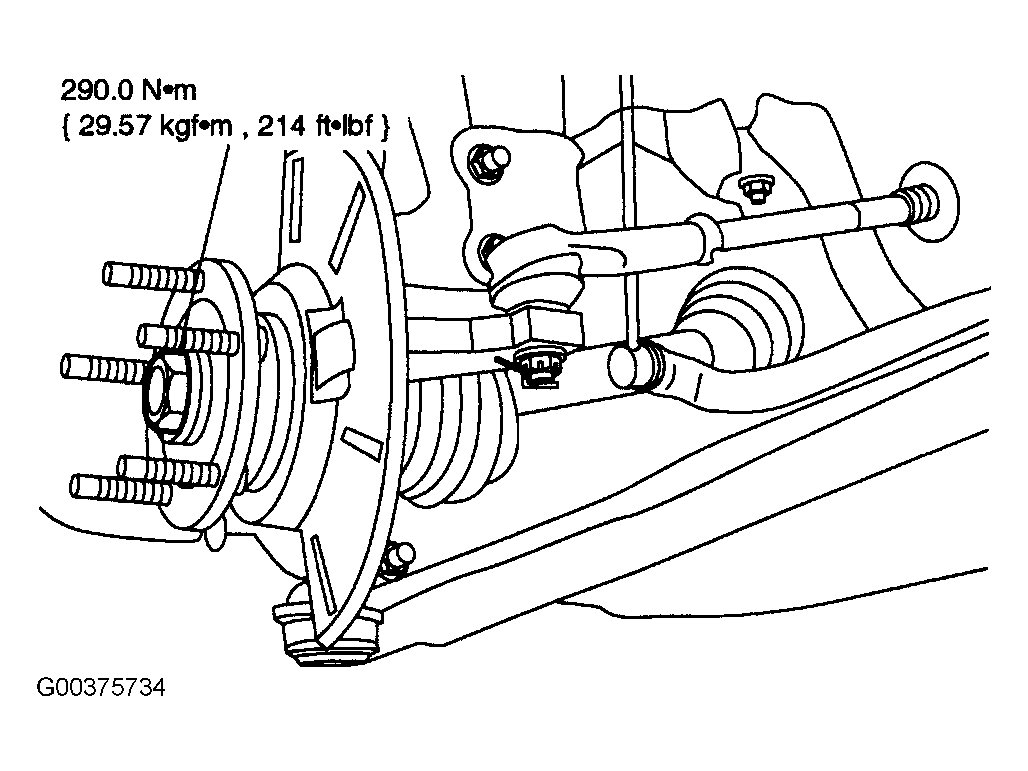

  3. Install the wheel hub nut. See Figure .
  4. Install the brake disc. See FRONT BRAKE ROTOR .
