Removal And Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire.
Remove the stabilizer bar link.
1. Remove the upper and lower stabilizer bar link nuts.
2. Remove the stabilizer bar link.

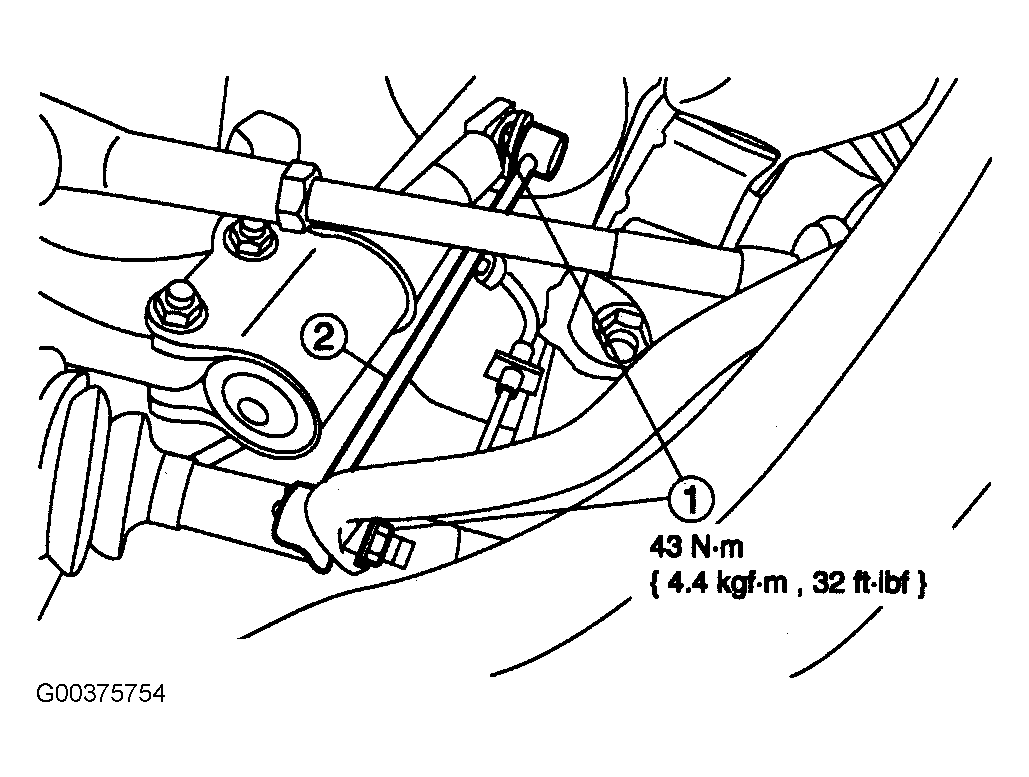

Fig 1: Removing Stabilizer Bar Link
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
