Valve Spring Inspection

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Apply pressing force to the pressure spring and inspect the spring height.
- If not as specified, replace the valve spring.
Pressing Force
1. 680 N {69.3 kgf, 152 lbf}
Standard Height
1. 30.19 mm {1.189 in}

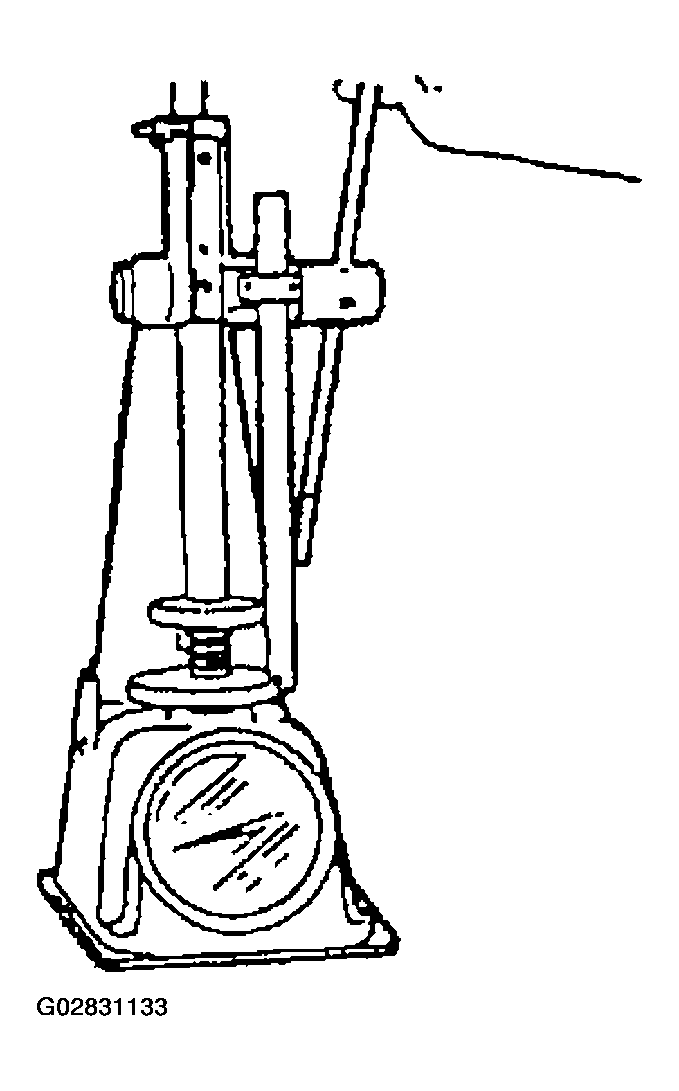

  Fig 1: Applying Pressing Force
  Courtesy of MAZDA MOTORS CORP.
Measure the out-of-square of the valve spring.
- If not as specified, replace the valve spring.
Valve Spring Maximum Out-Of-Square
1. 1% (0.468 mm {0.00184 in})

  Fig 2: Measuring Valve Spring Out-Of-Square
  Courtesy of MAZDA MOTORS CORP.
