Valve Guide Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Assemble the SSTs so that depth L is as specified.
Depth L
1. IN: 13.4-14.2 mm {0.528-0.559 in}
2. EX: 13.4-14.2 mm {0.528-0.559 in}

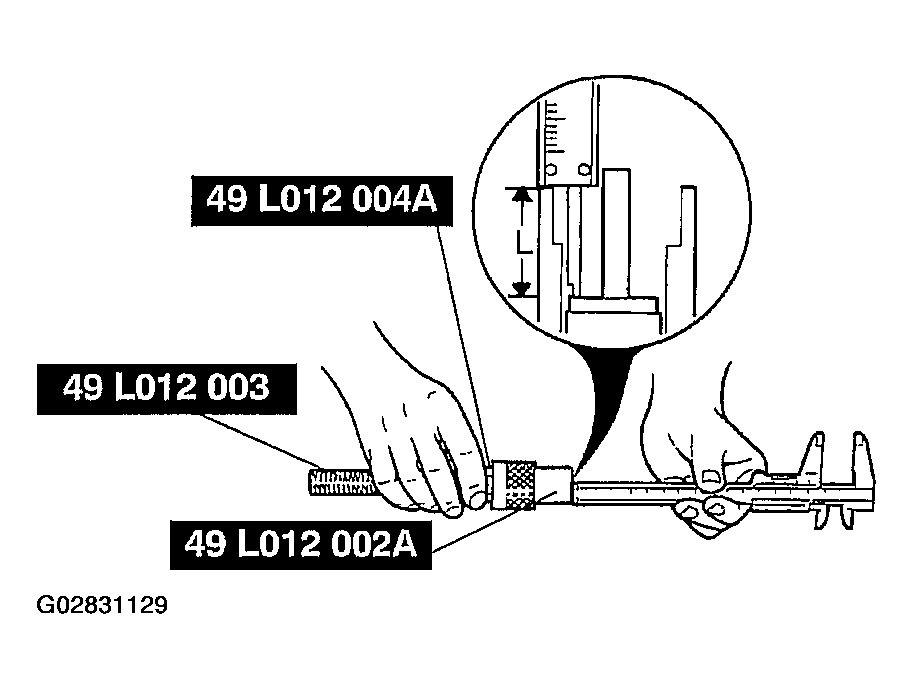

Fig 1: Identifying Depth L
Courtesy of MAZDA MOTORS CORP.
Tap the valve guide in from the side opposite the combustion chamber until the SSTs contact the cylinder head.

Fig 2: Installing Valve Guide
Courtesy of MAZDA MOTORS CORP.
Verify that the valve guide projection height is within the specification.
Standard Height
1. IN: 13.4-14.2 mm {0.528-0.559 in}
2. EX: 13.4-14.2 mm {0.528-0.559 in}
