Water Pump Drive Pulley Disassembly Note

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replace part A of the SST (49 UN30 3009)  with the SST (49 UN30 3457)  .
    Fig 1: Assembling SST
    G02831098Courtesy of MAZDA MOTORS CORP.
  2. Remove the water pump pulley using the SST  .

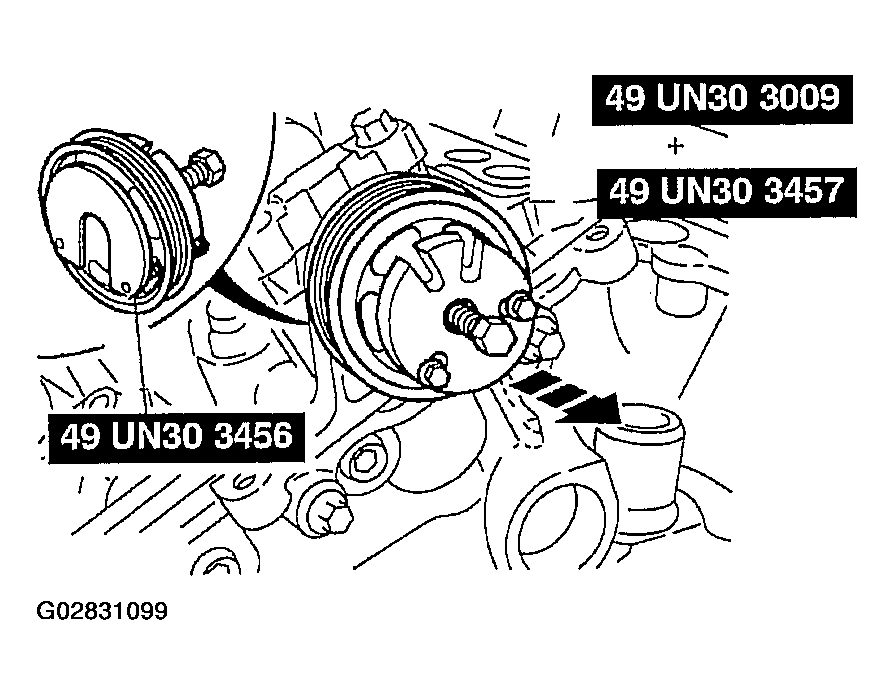

    Fig 2: Removing Water Pump Pulley
    G02831099Courtesy of MAZDA MOTORS CORP.
